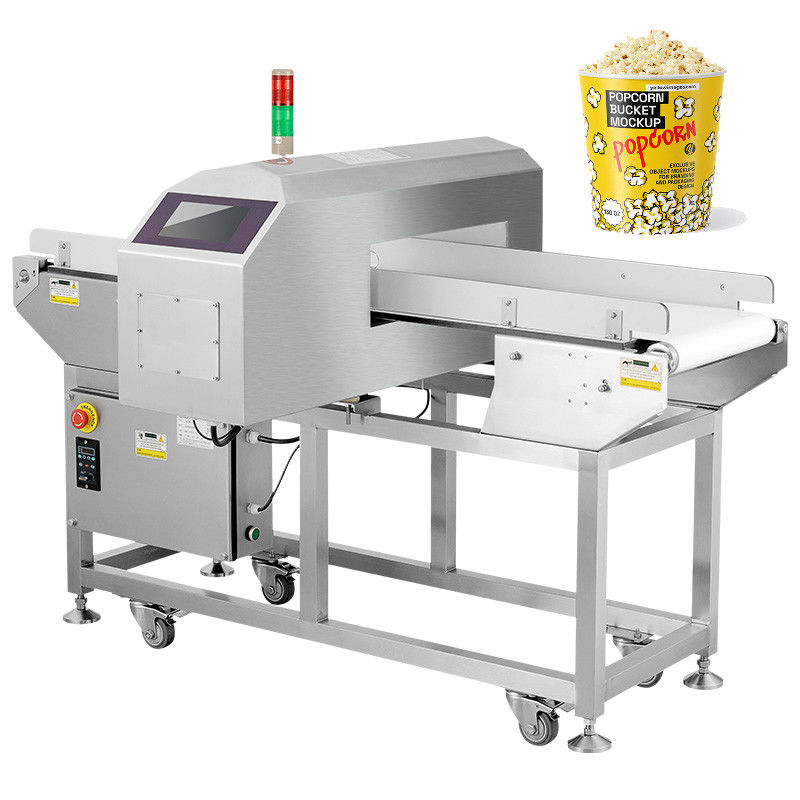

Thermal Circuit Food Metal Detector With Digital Processing, Peak Digital Display

Name: Thermal Circuit Food Metal Detector With Digital Processing, Peak Digital Display
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-990
Price: 2,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA-990

Document: About Shanan.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Thermal Circuit Food Metal Detector, Digital Processing Food Metal Detector


Alarm Mode:	Sound And Light	Detection Range:	0.1-2.0mm
Frequency:	50/60Hz	Humidity:	≤95%RH
Material:	Stainless Steel	Name:	Food Metal Detector
Power:	AC 220V	Sensitivity:	0.8mm
Size:	400300100mm	Type:	Industrial
Warranty:	1 Year	Weight:	8kg
Working Temperature:	0-40℃

Alarm Mode:	Sound And Light
Detection Range:	0.1-2.0mm
Frequency:	50/60Hz
Humidity:	≤95%RH
Material:	Stainless Steel
Name:	Food Metal Detector
Power:	AC 220V
Sensitivity:	0.8mm
Size:	400300100mm
Type:	Industrial
Warranty:	1 Year
Weight:	8kg
Working Temperature:	0-40℃

Thermal Circuit Food Metal Detector With Digital Processing, Peak Digital Display

Advanced Features & Benefits

User-friendly touch screen interface for quick setup and operation
Digital signal processing with thermal circuit technology for enhanced sensitivity and reliability
Large peak digital display for precise balance adjustment
Multi-frequency operation with data storage for over 100 product types
Comprehensive database management with USB export capability
Multi-level user permission settings (factory, engineer, operator)
Integrated inverter speed control for conveyor adjustment
Visual fault display interface for easy maintenance
Production statistics with quantity tracking and operation logging
IP-67 certified dustproof and waterproof construction
Compliance with GFS1 standards and FSMA regulations

Application Scope

Ideal for detecting metal impurities in food, pharmaceuticals, chemicals, rubber, plastics, aquatic products, toys, clothing, electrical components, leather, knitting, printing and other industries. Capable of detecting iron, non-magnetic metals, stainless steel, and other non-ferrous metals to enhance product safety.

Technical Specifications

Parameter	SA-990 Series
Passing Width (MM)	500~1200 (customizable)
Passing Height (MM)	200~1000 (customizable)
Standard Detection Sensitivity FE (ΦMM)	≥0.5
Standard Detection Sensitivity NON-FE (ΦMM)	≥0.8
Standard Detection Sensitivity SUS304 (ΦMM)	≥1.0
Protection Level	IP67
Product Memory Capacity	100 types
Display Method	LED Screen
Operation Method	Touch Button Input
Alarm Mode	Alarm stop, buzzer alarm or reject mechanism optional
Machine Material	Carbon steel paint or stainless steel 304 (HACCP, GMP, CAS compliant)
Machine Weight	≥120KG
Power Supply	AC200V±10% 50-60HZ (Customizable AC110V or AC380V)
Operating Environment	Temperature: -18°C to 50°C, Relative Humidity: 30~90%

Important Notes

Customization: Detection window and overall machine dimensions can be customized according to customer requirements.

Sensitivity Factors: Detection sensitivity decreases with increased detection window height and width. The specified sensitivity is measured with test cards placed in the center of the conveyor belt - actual sensitivity may vary based on product characteristics and usage conditions.
