Product Details
Place of Origin: China
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VDF-6012
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood box
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 100 set/month
Product Name: |
Belt Conveyor Metal Detector |
Material: |
304 Stainless Steel |
Tolerance: |
0.8 Mm Or More ( Fe , Non-fe , SUS) |
Tunnel Window: |
600 X 120 Mm |
Height From Ground To The Belt: |
750 Mm + 50 Mm Or Customize |
Warranty: |
24 Months |
Product Name: |
Belt Conveyor Metal Detector |
Material: |
304 Stainless Steel |
Tolerance: |
0.8 Mm Or More ( Fe , Non-fe , SUS) |
Tunnel Window: |
600 X 120 Mm |
Height From Ground To The Belt: |
750 Mm + 50 Mm Or Customize |
Warranty: |
24 Months |

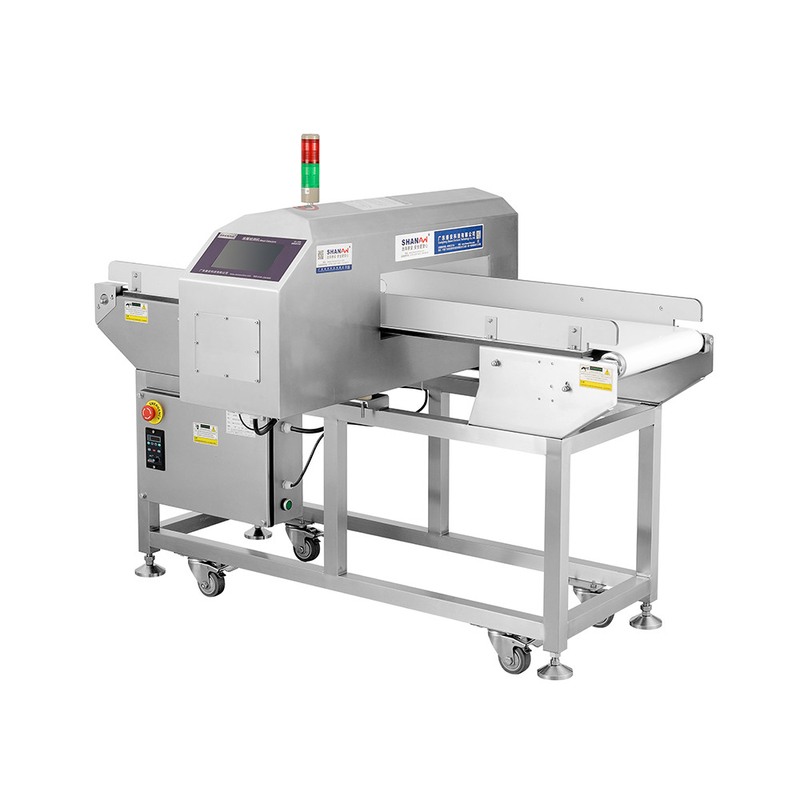

FDA Approved Auto-balance Food Metal Detector Conveyor Belt Metal Detector
Name | Industrial conveyor belt metal detector |
Model | VDF-6010 |
Sensitivity | 0.8 mm or more ( Fe , Non-fe , SUS) |
Material | Stainless steel 304 |
Warranty | 12 months |
Power supply | AC110/220V±10% 50-60Hz |
Application:
conveyor belt metal detector can be used in food, pharmaceutical, plastic, chemical, textile, garment, toy paper-making, hygienic products, electronics, renewable resources industry etc, applying to detect broken needles, iron wires, metals (such as Ferrous; Copper; Brass; Aluminum; Stannum; Stainless steel etc.) that mixed with products, raw materials. Using metal detector can help relative corporations pass HACCP,GMP, FDA,QS, ISO9001 certificate.
Product features
1.Operating system adopts highly human-oriented and intelligent design and has the function of one-bottom self-learning. The machine can set and store product parameters automatically and precisely when the products to be detected passing metal detector according to set procedure, no need to adjust by human and is easy to operate.
2. Detector is made by V FINDER unique materials and manufacturing techniques, possessing high sensitivity, strong ability for anti-interference, stable performances, and life span more than 10 years.
3. Having memory function for 100 kinds of products parameters; that is, metal detector can store 100 kinds of products parameters, and once the products parameters are set, no need to adjust again.
4. Metal detector can automatically detect faults when booting and has the function of prompt, which can effectively eliminate invalid detection.
5. The whole machine adopts modular design and installation, which benefits for assembly and disassembly, having advantages of convenient maintenance and low cost for maintenance.
6. Customization can be provided according to detecting products’ sizes, weight and characteristics in order to achieve best detection results.
7. The automatic conveying system, reject system and control system can be customized according to production line’s features, which can enhance production efficiency. 8. Customization for waterproof, dust-proof and explosion-proof needs can be provided according to the environment of production line in order to protect usage safety.
