Name: Digital Pharmaceutical Metal Detector Machine With Touch D Screen Display
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: VDM-8T
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VDM-8T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                pharma metal detector, tablet metal detector


Product Name:	Touch Screen Medicine Metal Detector	Nesting Time:	0.3-5S
Accuracy:	0.3 Mm	Amount:	250KG/HR Or Customized
GMP Standard:	Yes	Detection Diameter:	50 Mm
Reject System:	Automatic Push Rod And Alarm	Customized:	OEM

Product Name:	Touch Screen Medicine Metal Detector
Nesting Time:	0.3-5S
Accuracy:	0.3 Mm
Amount:	250KG/HR Or Customized
GMP Standard:	Yes
Detection Diameter:	50 Mm
Reject System:	Automatic Push Rod And Alarm
Customized:	OEM

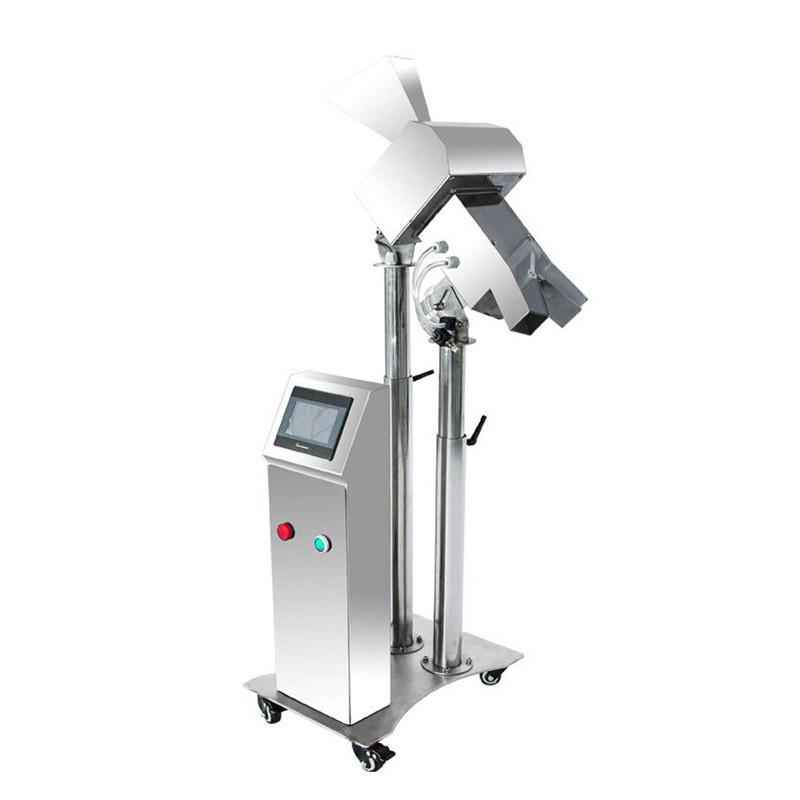

Digital Pharmaceutical Metal Detector Machine With Touch D Screen Display

Digital Pharmaceutical Metal Detector Machine With Touch D Screen Display 0

Digital pharmaceutical tablet metal detector machine for tablets and pills.

Application of Tablet metal detector machine:

It is mainly using for metal detectoring in tablets and pills in pharmaceutical production room and laboratory developing.

Features of tablet metal detector machine:

1. With two kinds of working frequency, the equipment can automatically choose the right frequency according to the product information.

2. Adopt touch D screen display, can operate without button.

3. Enjorys a self-learning function, and can store 100 kinds of products date.

4. Enjorys high sensitivity. can automatically reject the foreign bodies.

Technical specificaiton of metal detector machine:

1. Model: VMD-8T

2. Inspect ability: Fe, Al, Pl, Cu and other non-ferrous metal

3. Dual frequencies

4. Inspect ability (width): Max 115mm

5. Inspect ability (height): Max 25mm

6. Alarming form: Rejection via flipping the bezel

7. Configuration material: SUS316 stainless steel

8. Sensitivity: Fe≥0.8mm SUS≥1.5mm

9. With rejecter

10. Power supply, voltage: 220V, 50 Hz, 1ph, 200W

11. Environment temperature: -10 ℃ ~40℃

12. Touch screen

Technical Parameters:

Model	VDM-8T	VDM-8T	VDM-8T	VDM-8T
Cutting caliber	Φ25mm	Φ35mm	Φ50mm	Φ75mm	Φ100mm
accuracy	Φ0.2mm	Φ0.3mm	Φ0.5mm	Φ0.7mm	Φ1.0mm
Amount	250KG/HR	300-400 KG/HR	700-800 KG/HR	1000-1500 KG/HR	2000-2500 KG/HR
voltage	220V/50~60Hz	220V/50~60Hz	220V/50~60Hz	220V/50~60Hz	220V/50~60Hz
Temp	-10~+80	-10~+80	-10~+80	-10~+80	-10~+80
Nesting time	0.3-5S	0.3-5S	0.3-5S	0.3-5S	0.3-5S
Compressed air	3~5Bar	3~5Bar	3~5Bar	3~5Bar	3~5Bar
Dimension	318X230X326(mm)	318X230X326(mm)	318X230X326(mm)	378X270X350(mm)	390X280X385(mm)
