Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VCM-3
Document: Metal Detector.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Function: |
Online Weight Checking And Metal Detector |
Type: |
Checkweigher And Metal Detector |
Weighing Range: |
Siliver |
Function: |
Weighing And Metal Inspection |
Detecting Range: |
20-2000g |
Product Name: |
Overload Weight Checker |
Display Type: |
D Display |
Power Supply: |
110v Or 220v |
Accuracy: |
± 0.5 G |
Warranty: |
24 Months |
Function: |
Online Weight Checking And Metal Detector |
Type: |
Checkweigher And Metal Detector |
Weighing Range: |
Siliver |
Function: |
Weighing And Metal Inspection |
Detecting Range: |
20-2000g |
Product Name: |
Overload Weight Checker |
Display Type: |
D Display |
Power Supply: |
110v Or 220v |
Accuracy: |
± 0.5 G |
Warranty: |
24 Months |

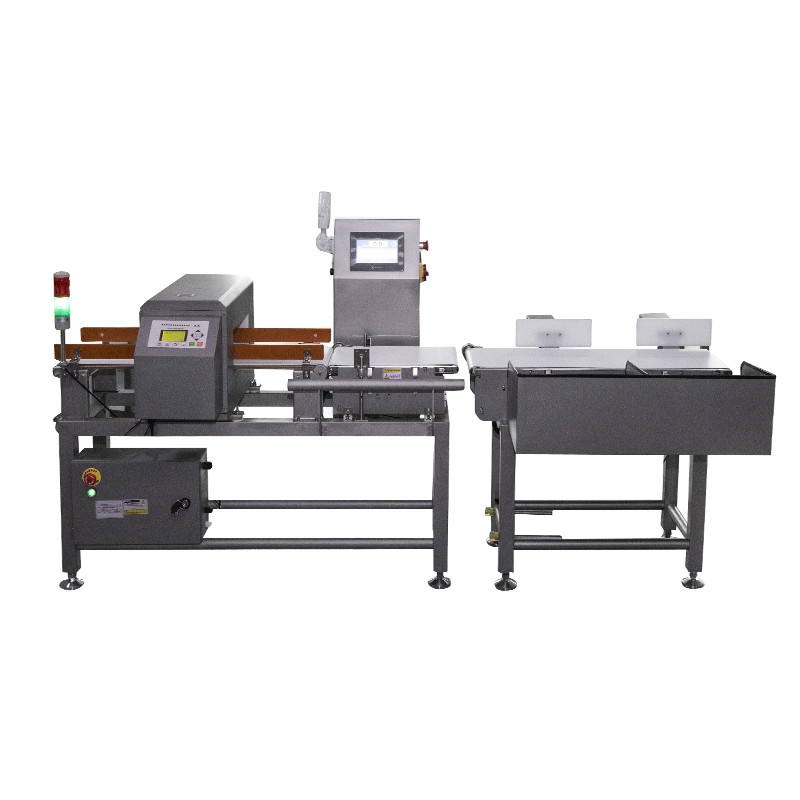

A Solution to reduce the space requirement of the production line to minimum through integrating the metal detector and checkweigher on a cantilever frame.
(1) To save production space
(2) Professional design, simple structure, convenient installation and cleaning.
Technical Parameter:
| Specifications | VCM-3 | |
| Detecting Range | 10g~2000g | |
| Detecting Accuracy | ±0.4~0.5g | |
| Detecting Speed | 80~120pieces/min | |
| Segments number of sorting | 3 | |
| Product Size to be Detected | Width | 20~220mm |
| Length | 35~200mm | |
| Height | 5~160mm | |
| Pressure Requirements | 0.5Mpa | |
| Rejecter | Rejecter Optional | |
| Power Supply | AC220V(Optional) | |
| Main Material | SUS304 | |
