CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action

CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action
CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action

Large Image :  CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action

Product Details:
Place of Origin: Guangdong province, China
Brand Name: Shanan
Certification: CE; ISO
Model Number: VMD series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed with strong wooden case
Delivery Time: 7-10 working days after confirming your payment
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Material: SUS304 Usage: Metal Particles Inspections
Applications: Food, Plastic, Medicine,Powder, Granules, Rice Detect Range: Magnetic And Non Magnetic Materials
Tube Diameter: 35 50 70 Mm Optional
High Light:

non ferrous metal detector

,

food safety detector

,

metal detector machine for food industry

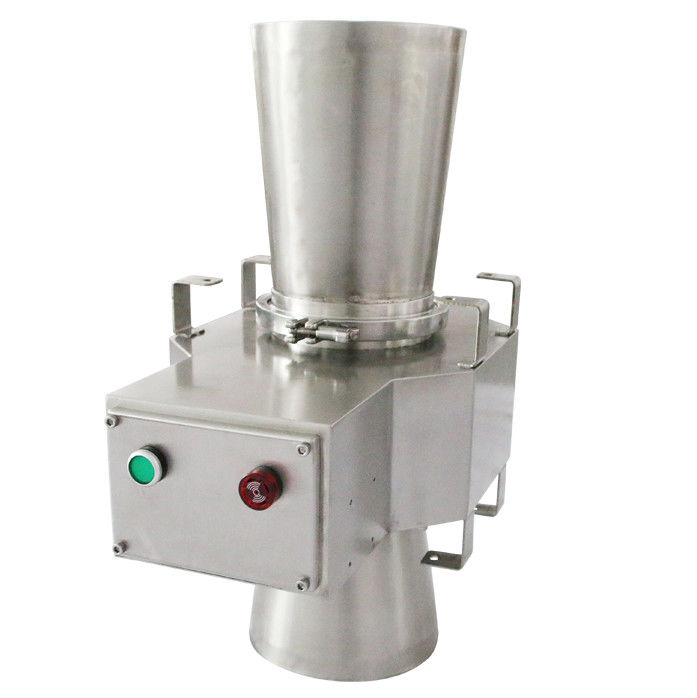

Digital Gravity Free Fall Metal Detector / Food Plastic Industry Metal Detection





Application:

  • Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .

Functions:

  • To detect and separate of all metals: copper, iron, zinc, stainless steel and all metals.
  • Features:
  • Detection method: Free-Falling body/Gravity
  • Suitable material: grain or powder
  • Separate ways: automatic separation
  • Advantage: high precision and simple installation.
  • Technical Parameter:
  • Operating voltage: 220 VAC (+ / -10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10/60 degrees
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE
  • Compressed air: 4-8 kg, connected with 6 - 8 mm hose
  • Gas consumption: 0.6 liters each separate action
  • Level of protection: IP 66
  • Separation time 0.2 - 2.5 seconds. No level can be adjusted
  • Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
  • The way of using and detect the material: To detect the plastic granules with falling body.
  • Material characteristics: dry, no long-fiber, non-conductive ,particles less than 8 mm





CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action 0

CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action 1CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action 2

Advantages:





1. Protect production device;

2. Enhance production efficiency;

3. Improve the availability of raw material;

4. Enhance product’s quality;

5. Reduce the expense of maintenance and shuts-down;







Techs:

Model
Feeding
caliber
(mm)

Detection sensitivity
Compressed
air
Testing
material
temperature

Non-conforming
material
Draw time
Host
installation
height
(mm)
Fe
SUS
VDM-50
50
0.3mm
0.5mm
3~5Bar
< 80℃
0.3~5s

VDM-70
70
0.7mm
1.0mm
3~5Bar
< 80℃
0.3~5s

VDM-100
100
0.8mm
1.2mm
3~5Bar
< 80℃
0.3~5s
473
VDM-120
120
1.2mm
1.5mm
3~5Bar
< 80℃
0.3~5s
VDM-150
150
1.5mm
2.0mm
3~5Bar
< 80℃
0.3~5s
600
VDM-200
200
1.8mm
2.2mm
3~5Bar
< 80℃
0.3~5s
922





Packing details:



Gravity Metal Separator Free Fall Metal Separator for Plastic Industry Package:
1. Plastic wrap moisture
2. Fixed on the bottom of the wooden box
3. Standard export wooden box packaging, reinforcement







CE Food Grade Metal Detector Gas Consumption 0.6 Liters Each Separate Action 3





Warranty Period





(a) Standard 12 (Twelve) months dated from delivery (Consumable parts and man-made broken are not included); ; If need much longer warranty period, please contact with our salesman. During warranty period, we offer replaced new parts for free.



(b) Out of warranty period, we will offer spare parts and technical support too and help customer to solve problems; If need replace parts, we will charge parts costs
