SA503 Series Magnetic Induction Food Metal Detector

Name: SA503 Series Magnetic Induction Food Metal Detector
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-508L
Price: 2,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA-508L

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                food metal detector


Alarm Output:	Relay Output	Alarm Type:	Audible And Visual
Detection Frequency:	50/60 Hz	Detection Range:	0.8-25mm
Detection Type:	Ferrous, Non-Ferrous, Stainless Steel	Humidity:	≤95%RH
Operating Temperature:	0-50℃	Power Supply:	220V/50Hz
Product Name:	Food Metal Detector	Sensitivity:	High
Size:	400320180mm	Warranty:	1 Year
Weight:	14kg

Alarm Output:	Relay Output
Alarm Type:	Audible And Visual
Detection Frequency:	50/60 Hz
Detection Range:	0.8-25mm
Detection Type:	Ferrous, Non-Ferrous, Stainless Steel
Humidity:	≤95%RH
Operating Temperature:	0-50℃
Power Supply:	220V/50Hz
Product Name:	Food Metal Detector
Sensitivity:	High
Size:	400320180mm
Warranty:	1 Year
Weight:	14kg

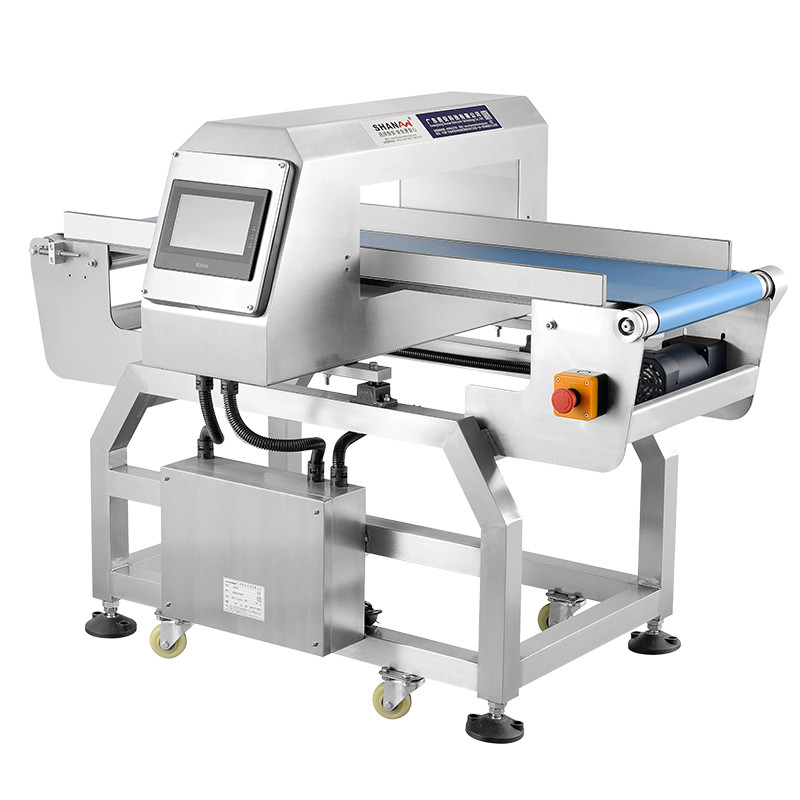

SA503 Series Magnetic Induction Food Metal Detector

This magnetic induction metal detector is specifically designed for detecting metal foreign objects in aluminum foil packaging products, providing reliable contamination prevention for food processing applications.

Key Features & Advantages

German digital circuit design ensures high detection accuracy
Strong product effect suppression for aluminum foil packaging, aquatic products, quick-frozen foods, and preserved products
Scientifically designed with simple, detachable rack for easy cleaning
Stainless steel detector probe and frame with exquisite craftsmanship and strong waterproof capability
White food grade imported conveyor belt
Detects common metal impurities including iron nails, blades, steel needles, screws, springs, and more
Automatic stop and reversing with sound and light alarm when metal contaminants are detected (external alarm compatible)
Digital precision adjustment with 1-120 sensitivity levels and computer circuit board design

Technical Specifications

Model SA503 Series	3008	3012	4008	4010	4012	4015	4020	4025
Through Width (MM)	300 customizable
Passing Height (MM)	100	120	150	200	250	300	350	400
Standard Test Sensitivity Fe (ΦMM)	0.6	0.8	1.0	1.2	1.5	2.0	2.5	3.0

Additional Specifications

Alarm Mode: Sound and light alarm with automatic conveyor stop; when automatic rejection structure is selected, conveyor belt continues running and automatically rejects contaminated products
Machine Material: 304 stainless steel
Belt Speed: 27m/min
Operating Environment: Temperature: 18-50°C, Humidity: 30-90%
Overall Size: 1660*750*1100MM
Machine Weight: Approximately 200KG

Note: The above sensitivity parameters are test results when there is no environmental interference in the empty machine. Actual application may vary slightly due to environmental conditions and characteristics of the detected objects.
