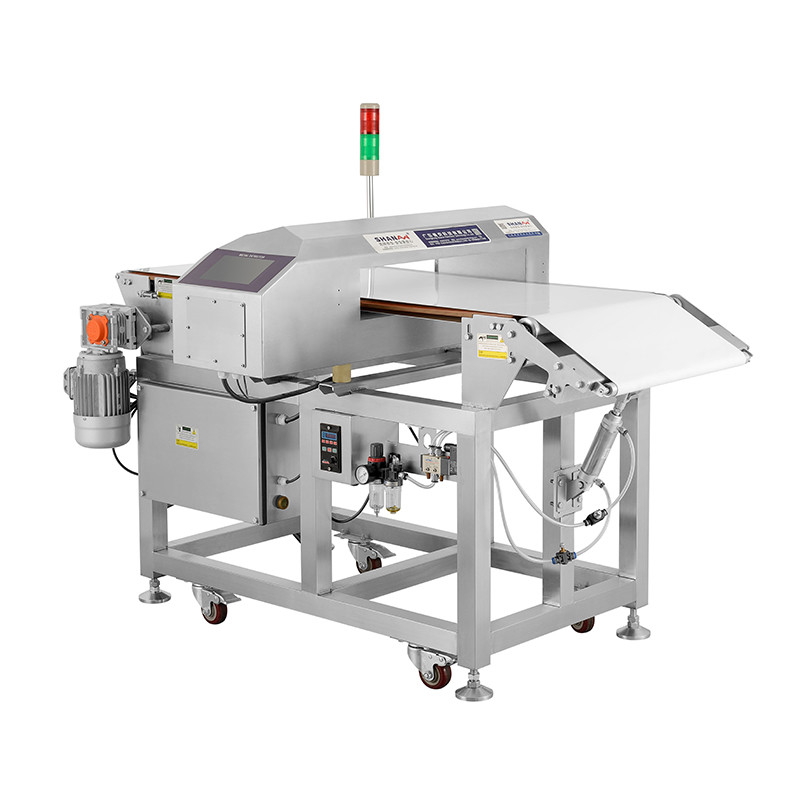

metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA990

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

food metal detector

Alarm Mode:
Audio/Visual
Detection Method:
Electromagnetic
Detection Range:
0.3-3mm
Detection Speed:
200-400mm/s
Material:
Stainless Steel
Power Consumption:
100W
Power Supply:
AC220V/50HZ
Product Name:
Food Metal Detector
Weight:
50Kg
Working Environment:
Temperature 0-40℃, Humidity 30-90%RH
Alarm Mode:
Audio/Visual
Detection Method:
Electromagnetic
Detection Range:
0.3-3mm
Detection Speed:
200-400mm/s
Material:
Stainless Steel
Power Consumption:
100W
Power Supply:
AC220V/50HZ
Product Name:
Food Metal Detector
Weight:
50Kg
Working Environment:
Temperature 0-40℃, Humidity 30-90%RH
metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors

metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 0metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 1metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 2metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 3metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 4metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 5metal detector for food industry metal detector food conveyor metal detector belt conveyor metal detectors 6

Scope of application: food, pharmaceutical, chemical, rubber, ice, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries to detect the metal impurities in the production process or raw materials, such as: iron, non-magnetic metal Items (gold, silver, steel, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor and reduce hazards.



SA-980 series 3008 3012 4008 4010 4012 4015 4020 4025
50 Through width(MM) 300 300 400 400 400 400 400 400
Passing height(MM) 80 120 80 100 120 150 200 250
Belt width(MM) 270 270 370 370 370 370 370 370
standard FE(ΦMM) 0.6 0.7 0.6 0.6 0.7 0.8 1 1.2
Detection NON-FE(ΦMM) 0.8 1 0.8 1 1 1.2 1.5 1.8
Sensitivity SUS304(ΦMM) 1 1.2 1 1.2 1.2 1.5 2 2.5
conveyor length(MM) 1200 1200 1500 1500 1500 1500 1500 1600
Belt height from the ground(MM) 750±50 can customize
protection level IP67
Number of memory products 100 kinds
Operation method Touch button input (touch optional)
Conveyor belt material food grade PVC belt(PU belt)
Alarm mode Alarm stop ,buzzer alarm or reject mechanism optional
Belt speed 28m/min
Machine material Carbon steel paint or stainless steel 304, fit for HACCP, GMP. CAS
Machine weight About 280KG
Motor Taiwan high-power motor can transport weight 1-15KG
Power supply AC220V±10% 50-60HZ (can be customized AC110V or 380V) other optional
Using environment

Temperature:-18~50°C , relative temperature:30-90°C
