Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VDM-6T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |

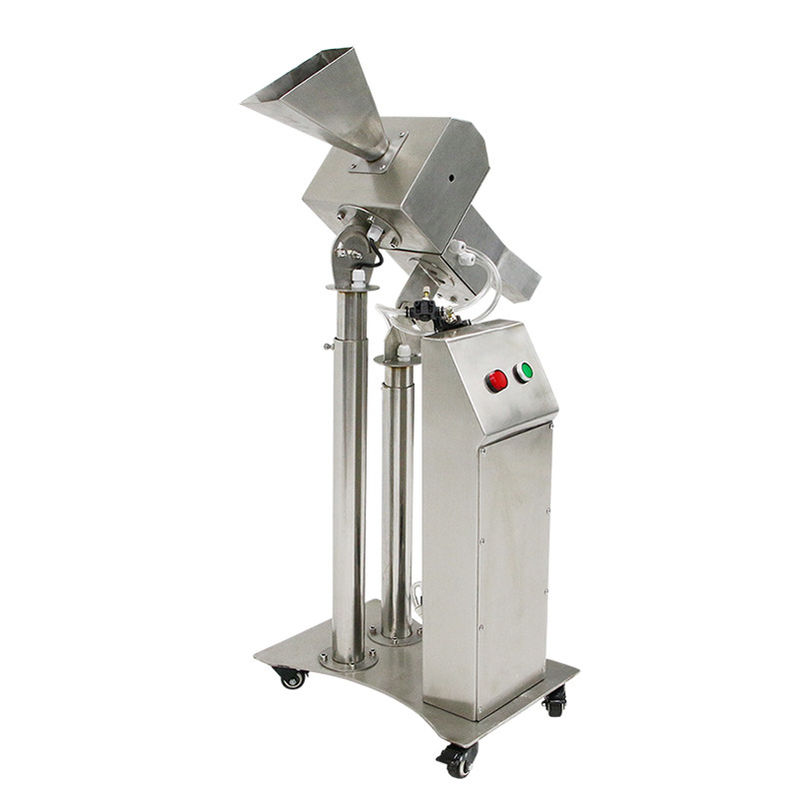

Pharmaceutical industrial for medicine tablet processing metal detector
1. The pharmaceutical used metal detector adopts Germany technology, main control board is imported from Germany, high accuracy and high sensitivity.
2. Special designed metal detector for pharmaceutical industry, used for the inspection of tablets and capsules, it detects all magnetic and non-magnetic metal contaminations (steel, stainless steel, aluminum) and can automatic eliminate them.
3. The metal detector Machine can match with tablet press machine, capsule filling machine and packing machine, can also used alone.
4. Metal Detect object: tablet, capsule, granule
5. Eliminating method: turning plate rejection.
Features:
1. The machine is made of stainless steel 304, match GMP standard and FDA requirement.
2. Can manually adjust the machine height and inclined angle, easy to move and clean.
3. Safety and waterproof design, protection grade: IP65.
4. Auto-learn function, product effect inhibition function, suitable for different product detection.
5. Memory function for 200 different products, can change the parameter fastly.
6. Automatic eliminate unqualified products, do not affect normal production.
Sensitivity and production capacity
Feed Opening | Production capacity | Detect Sensitivity (Iron :Fe Cooper:Cu Stainless Steel:SUS) |
35mm | 300kg/hr | Fe:0.3mm Cu0.3mm sus:0.8mm |
50mm | 800kg/hr | Fe:0.5mm Cu0.5mm sus:1.0mm |
70mm | 1800kg/hr | Fe:0.8mm Cu0.8mm sus:1.5mm |
100mm | 2500kg/hr | Fe:1.2mm Cu1.2mm sus:2.0mm |
150mm | 5000kg/hr | Fe:1.8mm Cu1.8mm sus:3.5mm |
Features of properties:
1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
