Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VTD-m
Document: About Shanan.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |

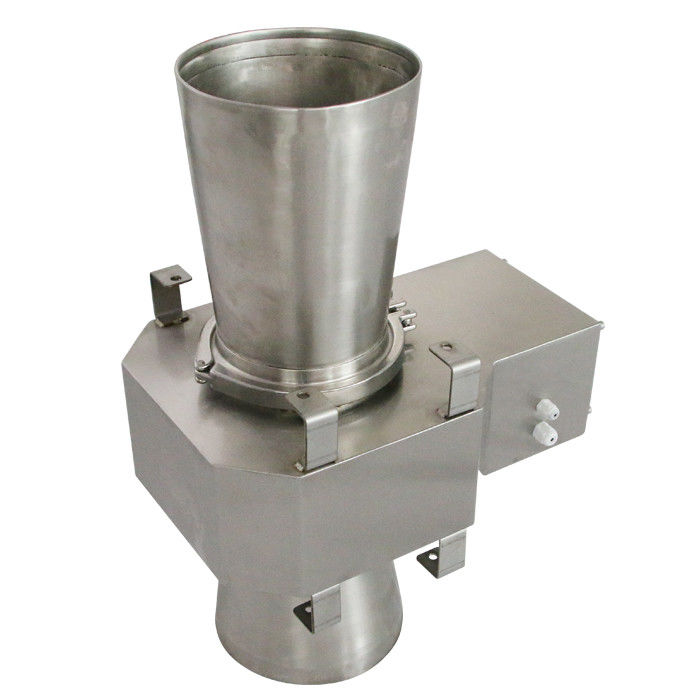

25mm Diameter High quality tablet capsule metal detector for pharmaceutical
Easy to Operate Iron and Stainless Steel Detection Machines Industrial Metal Detector for tablets
Brief introduction
Professional metal detection , special design for production line, high sensitivity and stability detection of Ferrious metal(Fe), Non-Ferrous(Copper, Aluminum) and stainless steel.Designed for food industrial ,garments industrial and pharmaceutical industrial use.Also can fit for detecting the chemical products, rubber products.
| Model | VTD-m | Rejection System | Air blast, swing arm, arm pusher (Option) |
| Detection Theory | Balanced Coil | Operation Way | Digital |
| Detection Adjustment | Auto and Manual | Alarm | Buzzer |
| Conveyor Speed | 25m/min, adjustable optional | Power | AC110V/220V 50-60HZ |
| Sensitivity Adjustment | Manual | Packing Size | 1000*900*1400mm |
| Deliver time | 15-20 workdays | ||
| Package | Plywooden case for package suitable for export shipment | ||
| Payment term | 50%T/T deposit,50% before shipping | ||
Features of properties:
1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
