Home > products > Metal Separator Machines > 250KG/HR 5S Plastic Granules Needle Metal Detector

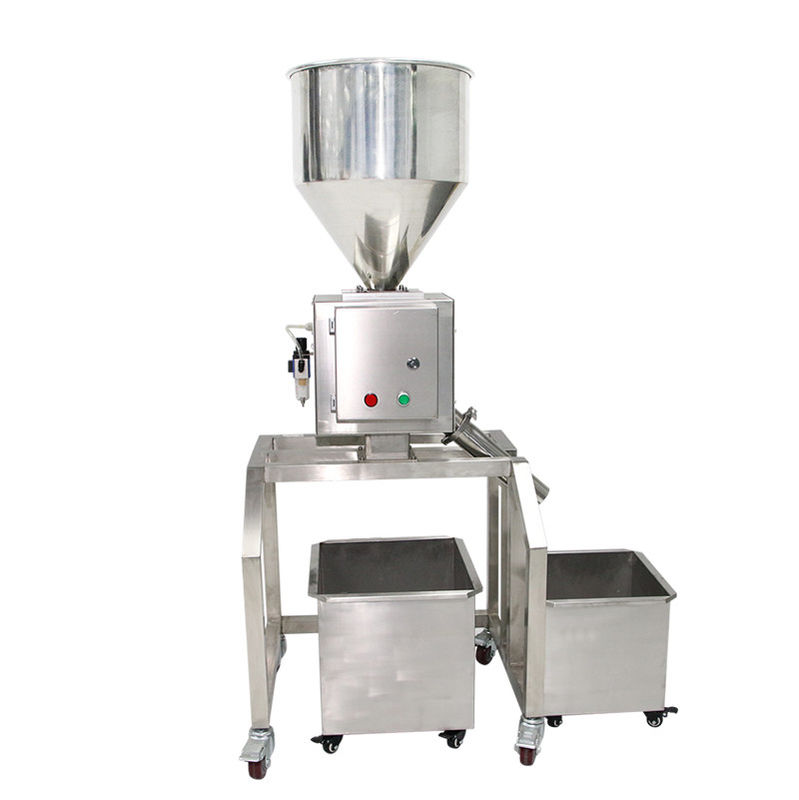

250KG/HR 5S Plastic Granules Needle Metal Detector

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VTD-m

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

Powder Food Metal Separator

,

Vertical Throat Metal Separator

Product Name:
Medicine Metal Detector
Nesting Time:
0.3-5S
Sensitivity:
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel
Amount:
250KG/HR
GMP Standard:
Yes
Detection Diameter:
25 Mm
Reject System:
Automatic Push Rod And Alarm
Customized:
OEM
Product Name:
Medicine Metal Detector
Nesting Time:
0.3-5S
Sensitivity:
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel
Amount:
250KG/HR
GMP Standard:
Yes
Detection Diameter:
25 Mm
Reject System:
Automatic Push Rod And Alarm
Customized:
OEM
250KG/HR 5S Plastic Granules Needle Metal Detector


High quality tablet capsule metal detector for pharmaceutical



Food metal separator ,plastic granules needle metal detecto for powder food



Summary:

Vertical Throat Metal Separator Pharmaceutical Industry Capsule Tablet Metal Detector

use electronic sensing principle to detect metals, both magnetic and non-magnetic metal can be detected to a high-precision metal detection and separation equipment, metal, including iron (magnetic) and non-iron (non-magnetic: copper, aluminum, tin , Stainless steel, etc.), due to the old material in the process of recycling and recycling of metal impurities will be mixed in which metal impurities may cause damage to equipment, affecting production. It is necessary to exclude these potential metal particles as much as possible! The simplest way is to use an all-metal separator that automatically detects and separates particles, linear metal impurities - as long as metal can be detected and removed, whether stainless steel, copper, aluminum, zinc, steel, or iron



Metal separator works:

The raw material from the hopper or feeder free fall into the metal separator, if there is no metal impurities, the raw materials will be directly through the metal separator to the lower end of the outlet. If the detector detects the presence of metal in the feedstock, the controller immediately activates the separation plate to direct the metal and part of the feedstock to the side of the discharge port, and then the manifold quickly returns to its normal position, the manifold speed is adjustable, the metal separator Of the detection accuracy can also be adjusted according to production needs, the minimum detection and separation of Φ 0.2mm metal particles.



Model VTD-m Rejection System Air blast, swing arm, arm pusher (Option)
Detection Theory Balanced Coil Operation Way Digital
Detection Adjustment Auto and Manual Alarm Buzzer
Conveyor Speed 25m/min, adjustable optional Power AC110V/220V 50-60HZ
Sensitivity Adjustment Manual Packing Size 1000*900*1400mm
Deliver time 15-20 workdays
Package Plywooden case for package suitable for export shipment
Payment term 50%T/T deposit,50% before shipping






Features of properties:

1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65

8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
