Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VTD-m
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |

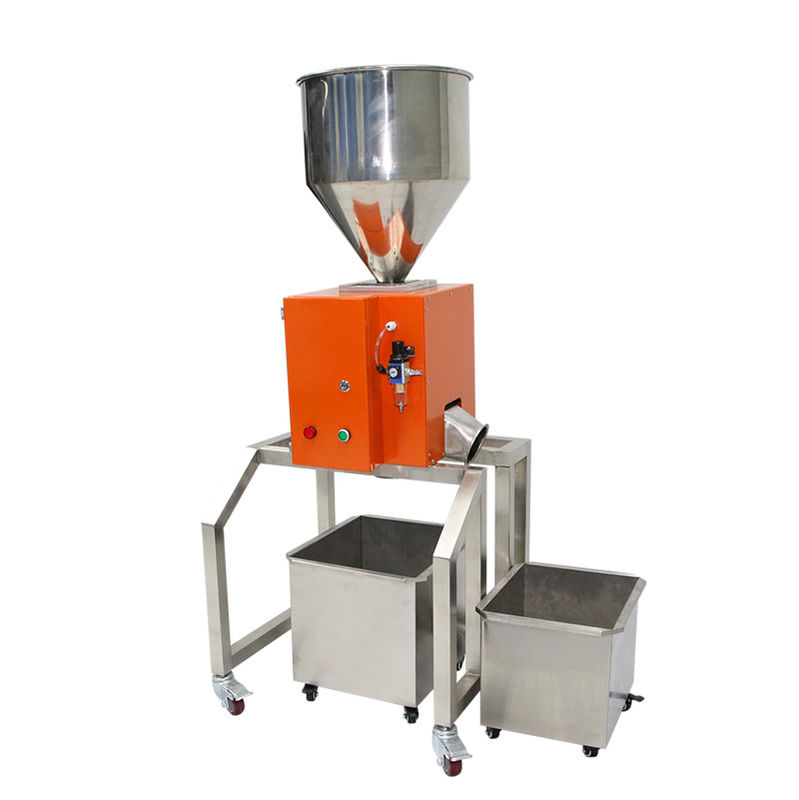

25mm Diameter High quality tablet capsule metal detector for pharmaceutical
Application:
Food industry, chemical industry, pharmaceutical industry, plastic industry, packaging industry, etc .
Function:
To detect and separate of all metals: copper, iron, zinc, stainless steel and all metals.
Features:
Detection method: Free-Falling body/Gravity
Suitable material: grain or powder
Separate ways: automatic separation
Advantage: high precision and simple installation.
Technical Parameter:
Operating voltage: 220 VAC (+ / -10%, 50/60 Hz)
Input current: 80/160 mA
Ambient temperature: -10/60 degrees
Case Material: Stainless Steel
Contact parts with material: PP plastic and PTFE
Compressed air: 4-8 kg, connected with 6 - 8 mm hose
Gas consumption: 0.6 liters each separate action
Level of protection: IP 66
Separation time 0.2 - 2.5 seconds. No level can be adjusted
Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
The way of using and detect the material: To detect the plastic granules with falling body.
Material characteristics: dry, no long-fiber, non-conductive ,particles less than 8 mm
Specifications:
80 type(internal detection tube Dia): 5000 l / h Accuracy: 0.7 iron, stainless steel, 1.5, copper 1.2 mm
100 type(internal detection tube Dia): 10000 l / h Accuracy: 0.8 iron, stainless steel, 2.0, copper 1.5 mm
150 type(internal detection tube Dia): 20000 l / h Accuracy: 1.2 iron, stainless steel, 2.3, copper 2.0 mm
200 type(internal detection tube Dia): 40000 l / h Accuracy: 1.5 iron, stainless steel, 2.5, copper 2.0 mm
250 Type(internal detection tube Dia): 65,000 l / h Accuracy: 2.0 iron, stainless steel, 3.0, copper 2.5 mm
