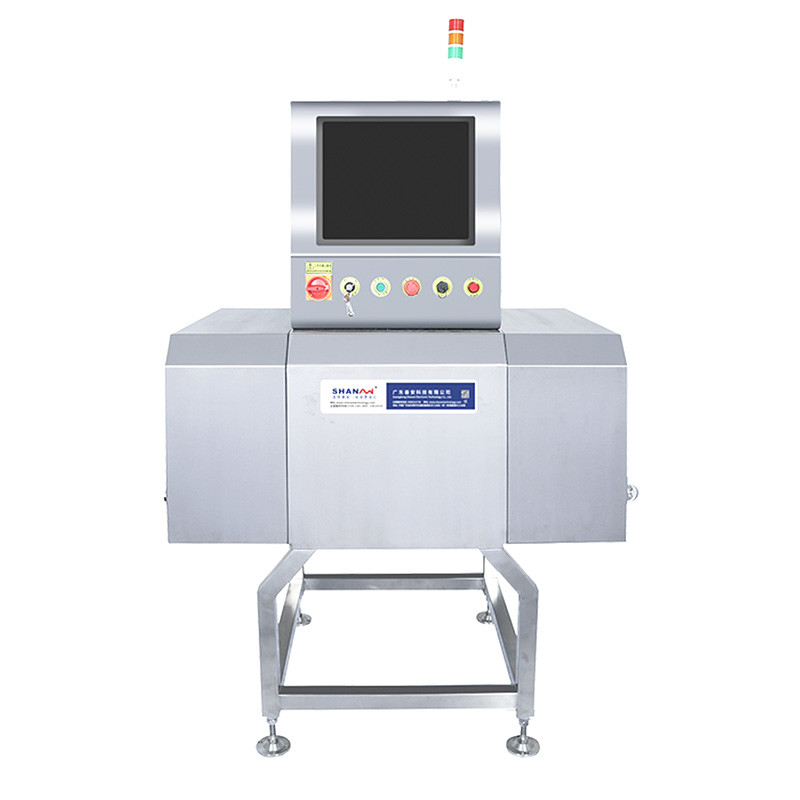

Pet Food Processing X Ray Inspection Systems with 17'' Full Color TFT Touch Screen

Pet Food Processing X Ray Inspection Systems with 17'' Full Color TFT Touch Screen
Pet Food Processing X Ray Inspection Systems with 17'' Full Color TFT Touch Screen Pet Food Processing X Ray Inspection Systems with 17'' Full Color TFT Touch Screen

Large Image :  Pet Food Processing X Ray Inspection Systems with 17'' Full Color TFT Touch Screen

Product Details:
Place of Origin: Guangdong, China
Brand Name: Shanan
Certification: ISO9001, HACCP, BRC, IFS
Model Number: SAXR-4020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood wooden box
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Detailed Product Description
Product Name: Food X-Ray Inspection Machine Optimum Inspection Sensitivity: Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters: Maximum Height: 200mm Conveyor Speed: 5-60 M/min
Load Capacity: 5Kg Or Customized Rejector Mode: Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak: <1μSvh (CE Standard) Detector Type: Linear Scan
Protection Level: IP67 Monitor: 17'' Full-color TFT Touch Screen
Operation Method: Touch Screen Operation Operation System: Linux (Core 4.10)
Support Data Interface: USB Parameter Settings: Self-learning / Manual Adjustment
Body Material: Food Grade SUS 304/ SUS316 Conveyor Belt Material: PU Belt/ PVC Belt
Air Conditioning: Internal Circulation Industrial Air Conditioner, Automatic Temperature Control Protection Method: Detachable Protective Curtain
Cleaning Method: Tool-free Removal Of Conveyor Belt For Easy Cleaning Power Supply: AC110V/220/380V, 50/60Hz
Environmental Requirements: Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation) Machine Weight: 380Kg
High Light:

SUS316 X Ray Inspection Systems


TFT X Ray Inspection Systems


17'' Food X Ray Machine


About Shanan Group.pdf


X-ray Inspection for Wet and Dry Pet Food Products

Pet food is equally as open to contamination as human food. Our x-ray inspection systems can improve product quality for the full range of pet food product and packaging types, with the versatility to inspect tins, boxes, pouches, bottles, and loose pet food.
Pet Food X-ray Applications
  • Ensure product conformity and product completeness.
  • Confirm accurate fill-levels (e.g. milk replacements for young animals)
  • Verify seals and lids are correct (e.g. seals on pouches of wet pet food and ring-pulls on tins of pet food)
  • Measure product mass (e.g. ensure the accurate weight of dry kibble)
  • Identify foreign objects such as metal, bone, glass, certain plastics, and other items
Why Choose X-ray Over Metal Detection for Pet Food?
X-ray offers the capability to detect metal inside metal containers such as tins and trays of pet food. A Shanan x-ray inspection system offers more sophistication than a metal detector because multiple inspections can be conducted by one machine, improving product quality and detection of contaminants such as glass and stone (which would not be identified by a metal detector).
Why Choose a Shanan X-ray System?
  • Unrivalled for speed, sensitivity, & sophistication of detection
  • Adaptable ergonomic design
  • Automatic calibration & automatic set-up
  • User-friendly interface and controls
  • Designed for quick and easy wash-down
  • Hygienic design, up to FMSA standards
  • Reject options to suit your production line
  • Most systems can be integrated into your production line with ease
  • Customised and bespoke x-ray inspection solutions are available for unique requirements
Pet Food Processing X Ray Inspection Systems with 17'' Full Color TFT Touch Screen 0

It has the same high detection accuracy as international brands and can be easily set by the operator.

(1) No matter how complex the product is, it can also be set through the automatic learning process without the participation of technicians.
(2) Shanan's algorithm platform adopts dynamic feature recognition method to automatically select the best algorithm parameters and obtain the highest sensitivity.
(3) The self-learning process only needs up to 10 images, and the algorithm model training can be completed after waiting for up to 20 seconds.


We value technical design for reliability
(1) The first in the industry to use server-level Linux system to fundamentally ensure stability and immunity to computer viruses.
(2) The fully sealed design is adopted to deal with the humid environment, the double-layer thermal cycle is adopted to deal with the high temperature environment, and the anti-condensation design is adopted to deal with the temperature difference environment.
(3) All purchased parts are high-end accessories to ensure stable operation in harsh environments.


User-Centric Operation
(1) The protection level of the equipment detection channel is IP66, which can be washed directly.
(2) The X-ray leakage meets the US standard, the outside of the equipment is less than 1uSv/h, and it has the function of safety monitoring.
(3) With modular design, customers do not need to re-purchase the host if they need to upgrade the production line.
(4) It only takes 5 seconds to disassemble the belt, and it is extremely convenient to disassemble and wash on site.
(5) Product configuration and inspection pictures can be automatically saved and exported for analysis
