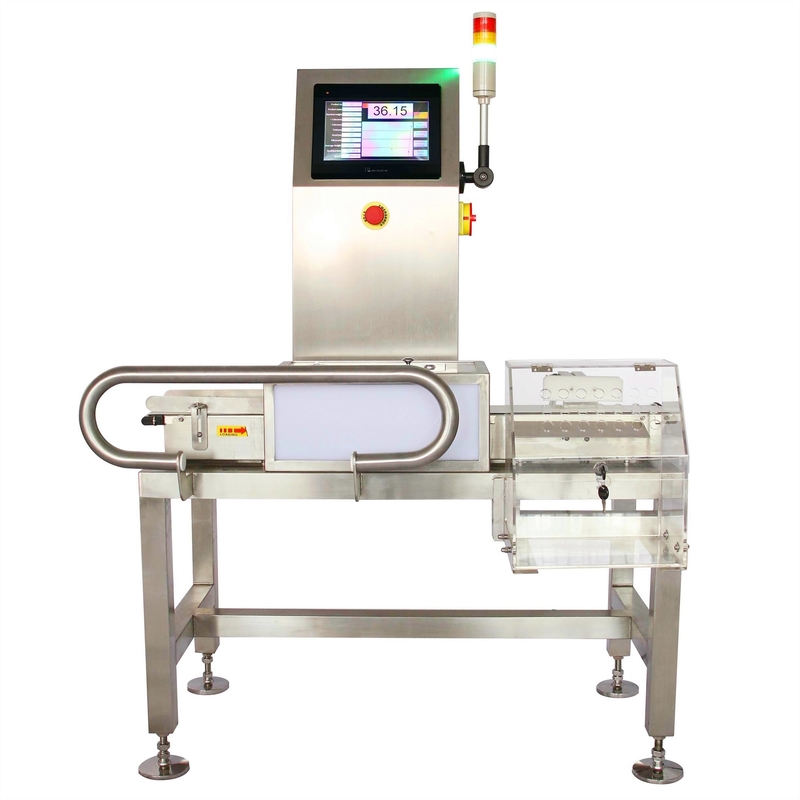

GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA-400

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

GMP Certification High Accuracy Checkweigher

,

Belt Conveyor High Accuracy Checkweigher

,

Capsule Conveyor Weight Checker

Product Name:
Dynamic Compensation In Checkweigher
Type:
Conveyor Belt
Usage:
Industrial Manufacturing And Others
Function:
Strong Self Diagnosis Function, Weighing, Auto Weight Checking And Rejector, Weight Function
Material:
SUS304, Stainless Steel, PVC Belt
Display:
Touch Screen
Weighing Range:
Customized
Rated Load:
Online Automatic Sugar Bag Conveyor Weight Checker
Belt Speed:
30~110m/min
Accuracy:
±0.1g
Warranty:
1 Year
Power:
110/220V 50-60HZ
Waterproof:
IP65 (International Standard)
Product Name:
Dynamic Compensation In Checkweigher
Type:
Conveyor Belt
Usage:
Industrial Manufacturing And Others
Function:
Strong Self Diagnosis Function, Weighing, Auto Weight Checking And Rejector, Weight Function
Material:
SUS304, Stainless Steel, PVC Belt
Display:
Touch Screen
Weighing Range:
Customized
Rated Load:
Online Automatic Sugar Bag Conveyor Weight Checker
Belt Speed:
30~110m/min
Accuracy:
±0.1g
Warranty:
1 Year
Power:
110/220V 50-60HZ
Waterproof:
IP65 (International Standard)
GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule

About Shanan Group.pdf



What is a checkweigher scale and Why Use a Belt conveyor Checkweigher?



Checkweighers prevent the under filling and overfilling of product, resulting in brand protection and cost reduction due to less product giveaway. Other advantages include simple and intuitive operation of the machines leading to short familiarization periods and trouble-free usage.



Application: It can be widely used in food, pharmaceutical, daily chemical, chemical, battery, hardware accessories, electronics, plastic and other industries.



Advantage:



•Entire machine in stainless steel housing with infeed, weighing, and outfeed belts
•Sorting device by means of blowing nozzle or mechanical pusher
•Maintenance free servo drives
•Memory of 2000 product parameters
•Easy , tool free exchange of conveyors
•Flexible integration in production lines

GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule 0


Tech Parameter



Model SA-210
power supply AC220V±10% 50HZ(60HZ)
rated power 0.15KW
Single weighing range ≤1000g
Weighing accuracy range ±0.3g~±1g
Minimum scale 0.1g
transfer speed 30~100m/min
Maximum speed 160 pcs/min
Weighing material size ≤280mm(L)*200mm(W)
Weighing conveyor belt size 400mm(L)*210mm(W)
Product Size 1500mm(L)*560mm(W)*1222mm(H)
Elimination method Pusher / single side swing / flap
Control System High speed A/D sampling controller
Preset product number 2000pc
Operation direction Facing the machine, left to right
External air supply 0.6-1Mpa
Barometric interface Φ8mm
working environment Temperature: 0℃~40℃,Humidity:30%~95%
Body material SUS304



GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule 1
GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule 2
GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule 3
GMP Certification Belt Conveyor High Accuracy Checkweigher For Capsule 4
Product model
SACW-210
Transfer speed
30~100m/min
Power supply
AC220V土10% 50HZ (60HZ)
Maximum speed
160 pcs/min
Rated power
0.15KW
Weighing conveyorbelt size
400mm(L)“210mm (W)
Single weighing range
1.5-200g
Elimination method
Blow-out
Weighing accuracy range
土0.02g~土1g
Control System
High speed A/Dsampling controller
Minimum scale
0.01g
Preset product number
2000pcs
Inspection item size
≤2800mm(L)*200mm (W)
size Machine
2100mm (L)*560mm(W)*1222mm (H)
Operation direction
Facing the machine, left to right
External air supply
0.6-1Mpa
Air pressure interface
Φ8mm
Workingenvironment
Temperature:0C~40C,Humidity:30%~95%
Body material
Stainless steel 304 polished
Operationscreen display
Chinese, English, Turkish, Spanish, etc.
Other standardequipment
Windshield (colorless and transparent), calibration weight
Height of beltsurface from ground
650mm~~750mm(can be customized)
Protection level
Protection level conforms to IP-65 international standard
Remarks
According to the different dimensions of the tested product andthe working environment in which the equipment is running, the
accuracyof the speedometer is slightly different
