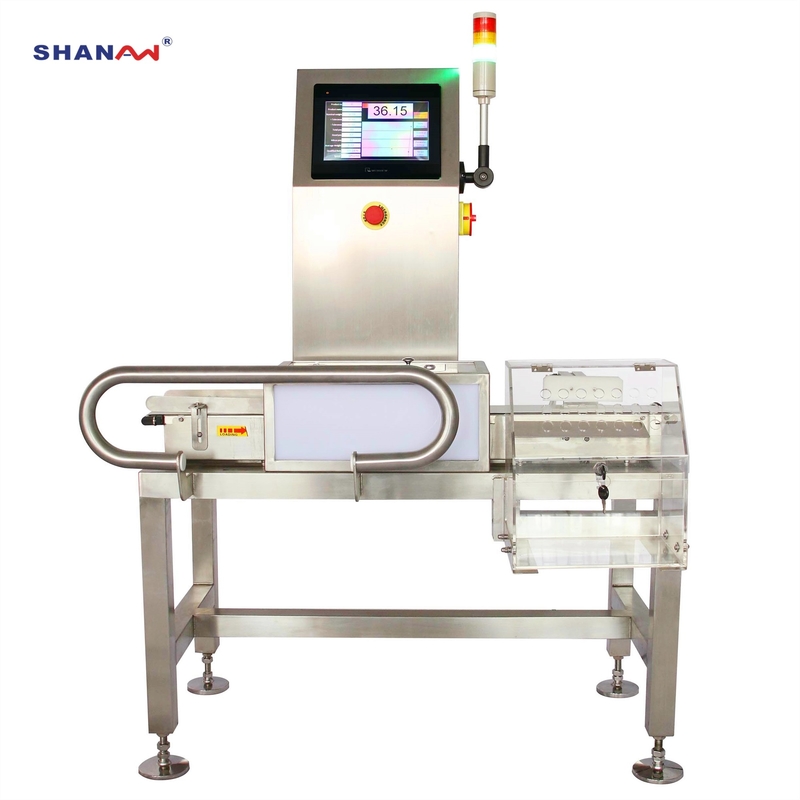

Industrial Belt Conveyor Weight Checker And Rejection Systems

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VC-25

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

220V Conveyor Weight Checker

,

50HZ Conveyor Weight Checker

,

LCD Conveyor Weight Checker

Type:
Check Weigher
Power Supply:
220V / 50HZ Or Customized
Display Type:
LCD
Accuracy:
1-1.5g
Conveyor Speed:
15-20 Box /minute
Weight Range:
Within 35Kg(optional)
Weigh Belt:
420L*220W Mm (optional)
Speed:
15-20 Box /minute
Warranty:
2 Years
Operate Panel:
10 Inch Colorful Touch Screen With English Operate
Type:
Check Weigher
Power Supply:
220V / 50HZ Or Customized
Display Type:
LCD
Accuracy:
1-1.5g
Conveyor Speed:
15-20 Box /minute
Weight Range:
Within 35Kg(optional)
Weigh Belt:
420L*220W Mm (optional)
Speed:
15-20 Box /minute
Warranty:
2 Years
Operate Panel:
10 Inch Colorful Touch Screen With English Operate
Industrial Belt Conveyor Weight Checker And Rejection Systems

 About Shanan Group.pdf
Large Throughput Checkweigher Scale , Automated Sorting System CE And ISO

What is a check weigher?

A metal detector check weigher incorporates two parts, metal detector and check weighter. Checkweighers are known also as belt weighters in-motion scales, conveyor scales, dynamic scales, and in-line scales. A checkweigher make sure  that every product leaving the production line is the right weight. They are key to ensuring that manufacturers provide quality products to improve customer satisfaction.

If you need to ensure products are within a certain weight range and free of metal contaminants, our checkweighers and metal detectors are sure to provide an ideal solution. Our range includes a variety of metal detectors for sale, in addition to quality check weighter that provide accurate, high-precision measurements. If you’re looking to buy a metal dertctor for food processing and inspection.

Our check weigher  standard features:

  • Strong stainless steel structure ensure stable performance and precise weighing;
  • Color digital LED touch screen, more stability and easier to operate;
  • Self-diagnosis function, when Rom/Ram, A/D light electric tube.

  • Based on advanced digital weighing unit;
  • Belt disassembling without tools, which is easier to clean

  • Reject system : arm, air blast or pneumatic pusher for selecting;

  • Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;


Scope of application :


  • Food
  • Chemicals
  • Beverages
  • Automotive
  • Cosmetics
  • Transport/logistics
  • Pharmaceuticals
  • Metal manufacture and fabrication industries


About  our VC series:
The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series is designed for very heavy packages and therefore is constructed of steel channel.


Parameter details :


Model Name VC-10 VC-15 VC-22 VC-30 VC-40 VC-25(two belt) VC-100
Weight range (g) 3-100 3-300 10-1200 30-3000 50-1000 50g-25kg 1kg-100kg
Mini weight accuracy (g) ±0.1 ±0.3 ±0.5 ±1 ±0.5 ±5g ±10g
Mini screen value (g) 0.01 0.1 0.1 0.1 0.1 0.5 1g
Max weigh speed (Bags /Minute ) 20 330 210 180 180 50 20
Belt speed 0 16-118 13-96 13-96 13-96 13-78 3-15
(Meter/minute )
Suitable product length (mm) - 60-180mm 60-300mm 60-420mm 60-500mm 60-420mm -
Suitable product width (mm) - 30-150mm 30-200mm 30-250mm 30-400mm 30-380mm -
Suitable product height (mm) - 10-130mm 10-200mm 10-330mm 10-330mm 10-430mm -
Weigh zone size (mm L*W) - 270*110 400*220 500*300 500*400 800*600 1000*800
Note Non-standard (without belt) High accuracy Small common model Customized model Customized model Common model for Box Roller end belt
Reject device optional Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )

 Industrial Belt Conveyor Weight Checker And Rejection Systems 0Industrial Belt Conveyor Weight Checker And Rejection Systems 1


Company information:

we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
