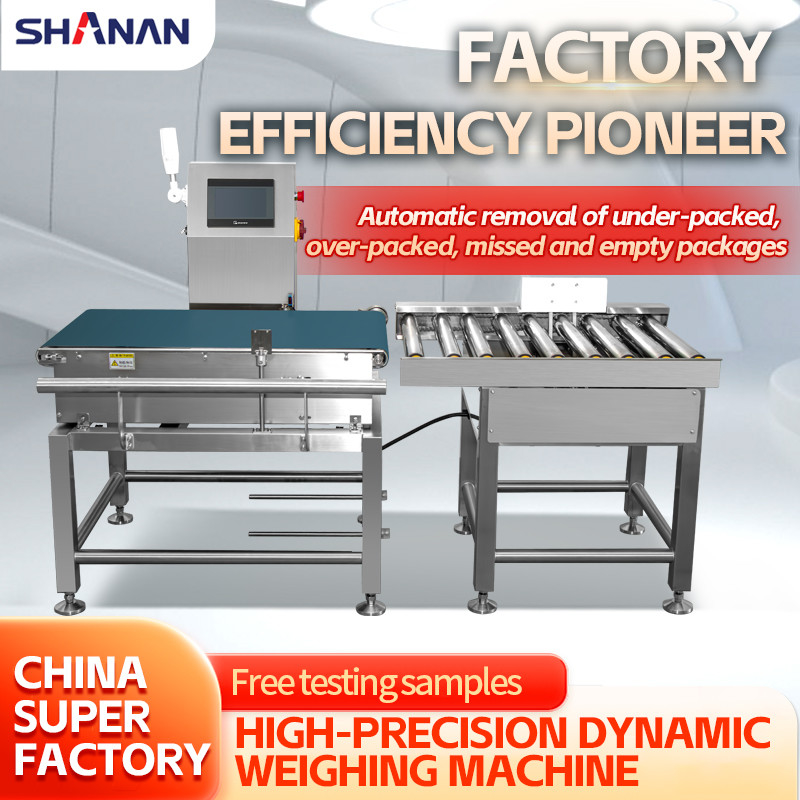

Agricultural Grain Auto Weighing Packing Machine 1kg-200kg With Reject Function

Name: Agricultural Grain Auto Weighing Packing Machine 1kg-200kg With Reject Function
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SACW500
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SACW500

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Grain Auto Weighing Packing Machine, Agricultural Auto Weighing Packing Machine


Operating Temperature:	0-40℃	Power Supply:	AC 220V/50Hz
Weighing Range:	Customized	Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting	Alarm:	Light And Sound
Display:	D	Throughout:	100~700PCS/min

Operating Temperature:	0-40℃
Power Supply:	AC 220V/50Hz
Weighing Range:	Customized
Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting
Alarm:	Light And Sound
Display:	D
Throughout:	100~700PCS/min

Agricultural Grain Auto Weighing Packing Machine 1kg-200kg With Reject Function

Professional automatic weighing and packing machine designed for agricultural grains and similar products, featuring advanced reject functionality for quality control.

Download Company Profile (PDF)

Technical Specifications

Product Model	SACW-120A
Transfer Speed	20~60 m/min
Power Supply	AC220V±10% 50HZ (60HZ)
Maximum Speed	180 pcs/min
Rated Power	0.15KW
Weighing Conveyor Belt Size	250mm(L) * 120mm(W)
Single Weighing Range	1.5-200g
Weighing Accuracy Range	±0.05g ~ ±0.1g
Minimum Scale	0.01g
Inspection Item Size	Length: 30-150mm, Width: 30-90mm, Height: 10-100mm
Machine Size	900mm(L) * 500mm(W) * 1250mm(H)
Operation Direction	Facing the machine, left to right
External Air Supply	0.6-1Mpa
Air Pressure Interface	Φ8mm
Working Environment	Temperature: 0°C~40°C, Humidity: 30%~95%
Body Material	Stainless Steel 304 Polished
Operation Screen Display	Chinese, English, Turkish, Spanish, etc.
Elimination Method	Blow-out
Control System	High speed A/D sampling controller
Preset Product Number	2000 pcs
Height of Belt Surface from Ground	650mm-750mm (can be customized)
Protection Level	Conforms to IP-55 international standard
Other Standard Equipment	Windshield (colorless and transparent), calibration weight
