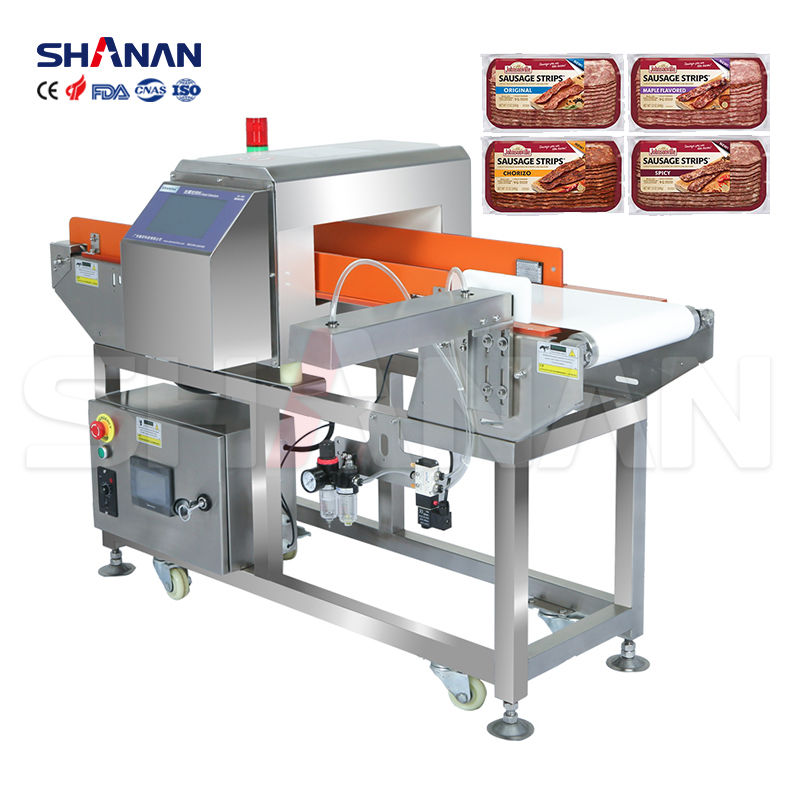

Frozen Seafood Meat Food Grade Metal Detector Factory Industrial With Rejection

Name: Frozen Seafood Meat Food Grade Metal Detector Factory Industrial With Rejection
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-990s
Price: 2,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SA-990s

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Food Frozen Seafood Metal Detector, Rejection Frozen Seafood Metal Detector, Rejection Frozen Seafood Metal Detector


Inspection Window Size:	200mm (height) X 400mm (width)	Power Supply:	220V 50Hz
Power Consumption:	120W	Machine Dimensions:	1600mm (L) X 900mm (W) X 800mm (H)
Gross Weight:	350kg	Net Weight:	300kg

Inspection Window Size:	200mm (height) X 400mm (width)
Power Supply:	220V 50Hz
Power Consumption:	120W
Machine Dimensions:	1600mm (L) X 900mm (W) X 800mm (H)
Gross Weight:	350kg
Net Weight:	300kg

Frozen Seafood Meat Food Grade Metal Detector Factory Industrial With Rejection

Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment

Details

Main material is stainless steel , anti-erosion and long life span.
Eliminated the ferrous,non ferrous and stainless steel metal ingredient.
The conveyor belt is made of nonpoisonous materia.
Water-Proof, IP66 compliant.
Good Anti-interference function: reduce product effect signal.
The performance of the conveyor belt is complied with the American food sanitation standard (FDA),
it can be used for transporting the unpacked food directly.
Store about 100 product data, is suitable for a product line with volatile detecting products.
Can stably work for a long time, with a special design that is suitable for a harsh production environment
of strong vibration and high interference,and the equipment won’t miss alarm even when you tap the probe.
Siemens touch screen and control systems, high speed digital signal processing devices and intelligent
algorithms, which greatly improves the sensitivity and stability of the machine.

Technical parameters

1. Inspection window size:

Normal height of inspection window(mm): 200

Normal width of inspection window(mm): 400

The measures of the inspection window which can be designed according customers requirement.

Electrical source: 220V 50Hz
Power : 120

2.Alarm: Audible and visual alarm, automatic stop

3.Normal Size (mm): (mm): 1600(L) X 900(W) X800(H)

4.Gross Weight: approx 350Kgs Net Weight: Around 300kgs

Table of Sensitivity

Sensitivity Parameter list:

Tunnel size	25*8cm	30*10cm	40*12cm	50*20cm	60*30cm
Fe:	≥0.5mm	≥0.8mm	≥0.8mm	≥1.0mm	≥1.5mm
sus:	≥1.2mm	≥1.5mm	≥2.0mm	≥2.5mm	≥3.0mm

Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on

condition of different products being tested.

Quality assurance:

One year limited warranty(Labor and parts)

Frozen Seafood Meat Food Grade Metal Detector Factory Industrial With Rejection 0

Model		SA-990
Machine length (mm)		1330~2000 (can customize)
Detection tunnel width (mm)		200~1200 (can customize)
Detection tunnel height (mm)		50~1000 (can customize)
Standard detection sensitivity	FE(Φmm)	≥0.5
	NON-FE(Φmm)	≥0.8
	SUS304(Φmm)	≥1.0
Protection level		IP67
Number of memory products		200+ kinds
Display mode		Touch Screen
Operation mode		Touch button input
Alarm mode		Alarm stop, buzzer alarm or rejector device optional
Machine material		Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other standards
Conveyor belt material		Food grade PVC or PU belt
Machine weight		About 280KG
Motor		90~370W
Transfer speed		10-28m/min (optional and adjustable)
Power supply		AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
Belt height above the ground (mm)		700+100 (can customized)
Maximum load (single piece)		10~50KG (can customized)
Using environment		Temperature: -15℃~40℃, relative humidity: 30~85RP
