High Performance Weighing Solutions For All Industries conveyor Check Weigher

Name: High Performance Weighing Solutions For All Industries conveyor Check Weigher
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SACW500
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SACW500

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: wooden box

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                industrial conveyor check weigher, high performance check weigher, conveyor weight checker with warranty


Operating Temperature:	0-40℃	Power Supply:	AC 220V/50Hz
Weighing Range:	Customized	Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting	Alarm:	Light And Sound
Display:	D	Throughout:	100~700PCS/min

Operating Temperature:	0-40℃
Power Supply:	AC 220V/50Hz
Weighing Range:	Customized
Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting
Alarm:	Light And Sound
Display:	D
Throughout:	100~700PCS/min

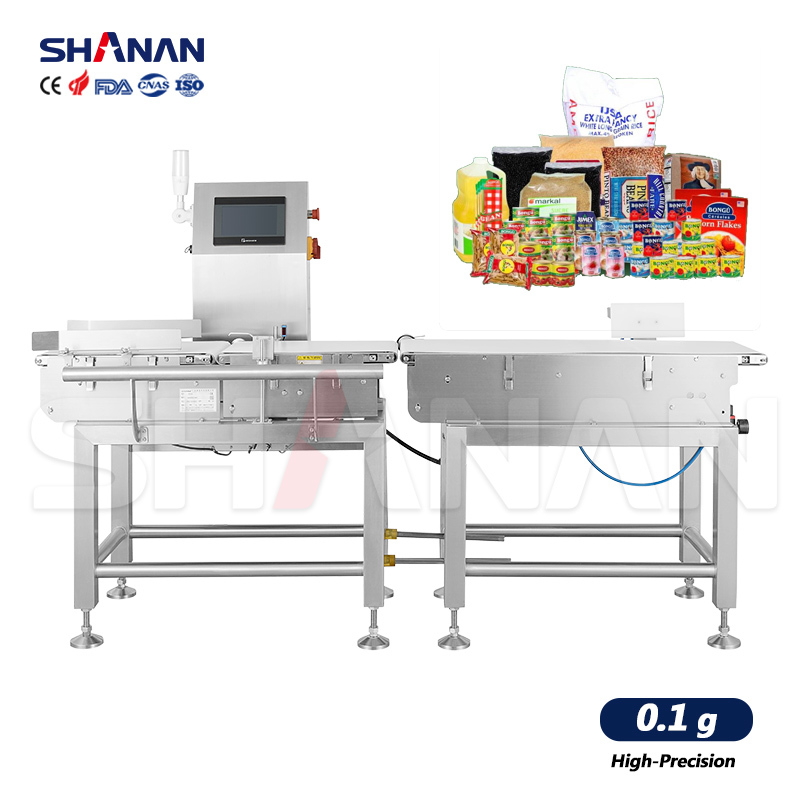

High Performance Weighing Solutions For All Industries conveyor Check Weigher

High Performance Conveyor Check Weigher

Precision weighing solutions designed for diverse industrial applications with exceptional accuracy and reliability.

Download Product Documentation

Technical Specifications

Product Model	SACW-120A	Transfer Speed	20~60 m/min
Power Supply	AC220V±10% 50HZ (60HZ)	Maximum Speed	180 pcs/min
Rated Power	0.15 KW	Weighing Conveyor Belt Size	250mm(L) * 120mm(W)
Single Weighing Range	1.5-200g	Elimination Method	Blow-out
Weighing Accuracy Range	±0.05g ~ ±0.1g	Control System	High speed A/D sampling controller
Minimum Scale	0.01g	Preset Product Number	2000 pcs
Inspection Item Size	Length: 30-150mm, Width: 30-90mm, Height: 10-100mm
Machine Size	900mm(L) * 500mm(W) * 1250mm(H)
Operation Direction	Facing the machine, left to right
External Air Supply	0.6-1 Mpa	Air Pressure Interface	Φ8mm
Working Environment	Temperature: 0°C~40°C, Humidity: 30%~95%
Body Material	Stainless steel 304 polished
Operation Screen Display	Chinese, English, Turkish, Spanish, etc.
Other Standard Equipment	Windshield (colorless and transparent), calibration weight
Height of Belt Surface from Ground	650mm-750mm (can be customized)
Protection Level	Protection level conforms to IP-55 international standard

Note: According to the different dimensions of the tested product and the working environment in which the equipment is running, the accuracy of the speedometer is slightly different.
