Stainless Steel 304 Conveyor Weight Checker Multiple Language Display checkweigher

Name: Stainless Steel 304 Conveyor Weight Checker Multiple Language Display checkweigher
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SACW500
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SACW500

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: wooden box

Payment Terms: L/C,D/A,D/P,T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Stainless Steel 304 checkweigher, Conveyor weight checker with multiple language display, Checkweigher with warranty


Operating Temperature:	0-40℃	Power Supply:	AC 220V/50Hz
Weighing Range:	Customized	Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting	Alarm:	Light And Sound
Display:	D	Throughout:	100~700PCS/min

Operating Temperature:	0-40℃
Power Supply:	AC 220V/50Hz
Weighing Range:	Customized
Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting
Alarm:	Light And Sound
Display:	D
Throughout:	100~700PCS/min

Stainless Steel 304 Conveyor Weight Checker Multiple Language Display checkweigher

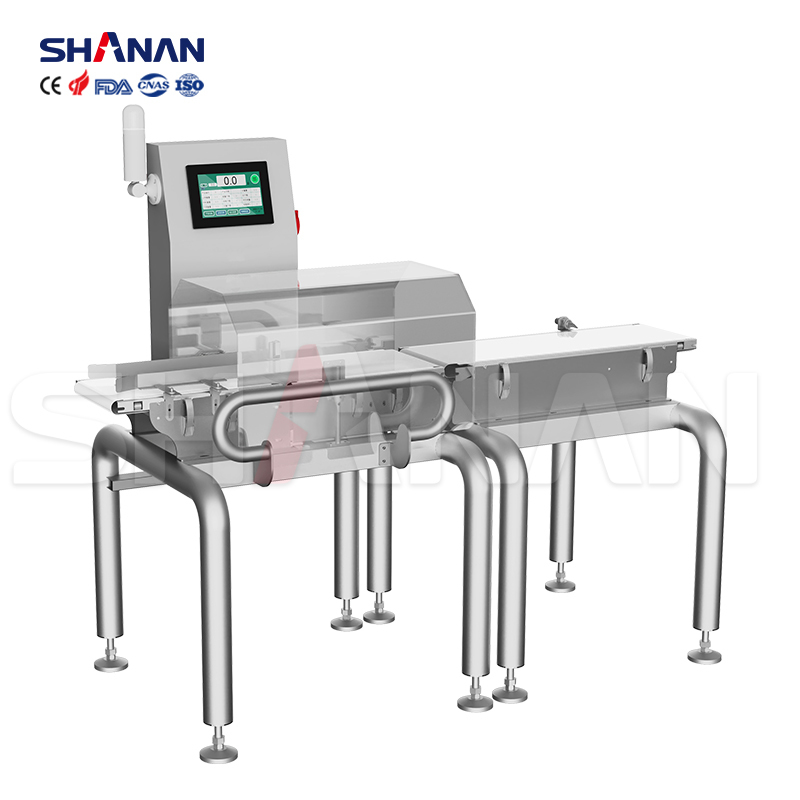

Stainless Steel 304 Conveyor Weight Checker with Multi-Language Display

High-precision stainless steel checkweigher designed for accurate weight verification in industrial production lines. Features multi-language display and robust construction for demanding manufacturing environments.

Technical Specifications

Product Model	SACW-120A	Transfer Speed	20~60m/min
Power Supply	AC220V±10% 50HZ (60HZ)	Maximum Speed	180 pcs/min
Rated Power	0.15KW	Weighing Conveyor Belt Size	250mm(L)*120mm(W)
Single Weighing Range	1.5-200g	Elimination Method	Blow-out
Weighing Accuracy Range	±0.05g~±0.1g	Control System	High speed A/D sampling controller
Minimum Scale	0.01g	Preset Product Number	2000pcs
Inspection Item Size	Length: 30-150mm, Width: 30-90mm, Height: 10-100mm
Machine Size	900mm(L)500mm(W)1250mm(H)
Operation Direction	Facing the machine, left to right
External Air Supply	0.6-1Mpa	Air Pressure Interface	Φ8mm
Working Environment	Temperature: 0°C~40°C, Humidity: 30%~95%
Body Material	Stainless steel 304 polished
Operation Screen Display	Chinese, English, Turkish, Spanish, etc.
Height of Belt Surface from Ground	650mm-750mm (can be customized)	Protection Level	IP-55 international standard

Standard Equipment

Windshield (colorless and transparent)
Calibration weight

Additional Product Views

Note: According to the different dimensions of the tested product and the working environment in which the equipment is running, the accuracy of the speedometer is slightly different.
