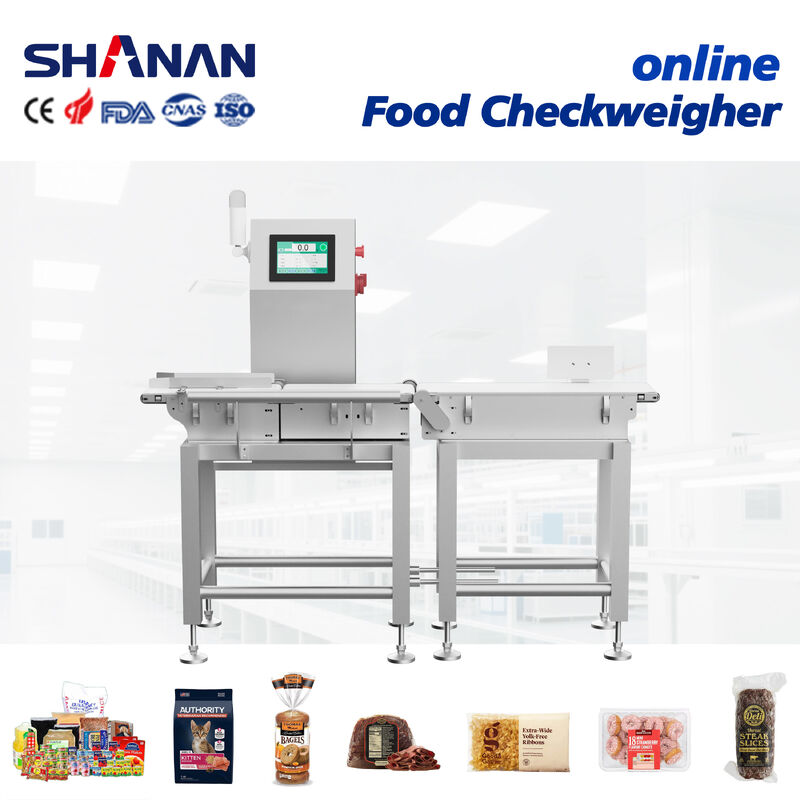

Auto Weighing Packing Machine 500kg-800kg With Reject Function Conveyor Checkweigher

Name: Auto Weighing Packing Machine 500kg-800kg With Reject Function Conveyor Checkweigher
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SACW500
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SACW500

Document: Checkweigher.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                500kg-800kg conveyor checkweigher, auto weighing packing machine with reject, conveyor weight checker with reject function


Operating Temperature:	0-40℃	Power Supply:	AC 220V/50Hz
Weighing Range:	Customized	Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting	Alarm:	Light And Sound
Display:	D	Throughout:	100~700PCS/min

Operating Temperature:	0-40℃
Power Supply:	AC 220V/50Hz
Weighing Range:	Customized
Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting
Alarm:	Light And Sound
Display:	D
Throughout:	100~700PCS/min

Auto Weighing Packing Machine 500kg-800kg With Reject Function Conveyor Checkweigher

About Shanan Company Profile

Technical Specifications

Product Model	SACW-120A	Transfer Speed	20~60m/min
Power Supply	AC220V±10% 50HZ (60HZ)	Maximum Speed	180 pcs/min
Rated Power	0.15KW	Weighing Conveyor Belt Size	250mm(L)*120mm(W)
Single Weighing Range	1.5-200g	Elimination Method	Blow-out
Weighing Accuracy Range	±0.05g~±0.1g	Control System	High speed A/D sampling controller
Minimum Scale	0.01g	Preset Product Number	2000pcs
Inspection Item Size	Length: 30-150mm Width: 30~90mm Height: 10-100mm
Machine Size	900mm(L)500mm(W)1250mm(H)
Operation Direction	Facing the machine, left to right
External Air Supply	0.6-1Mpa	Air Pressure Interface	Φ8mm
Working Environment	Temperature: 0°C~40°C, Humidity: 30%~95%
Body Material	Stainless steel 304 polished
Operation Screen Display	Chinese, English, Turkish, Spanish, etc.
Other Standard Equipment	Windshield (colorless and transparent), calibration weight
Height of Belt Surface from Ground	650mm~750mm (can be customized)
Protection Level	Protection level conforms to IP-55 international standard

Additional Features

High-speed precision weighing with reject function
Multi-language operation interface support
Customizable belt height for ergonomic operation
Industrial-grade stainless steel construction
Advanced blow-out rejection system for under/overweight products

Note: According to the different dimensions of the tested product and the working environment in which the equipment is running, the accuracy of the speedometer is slightly different.
