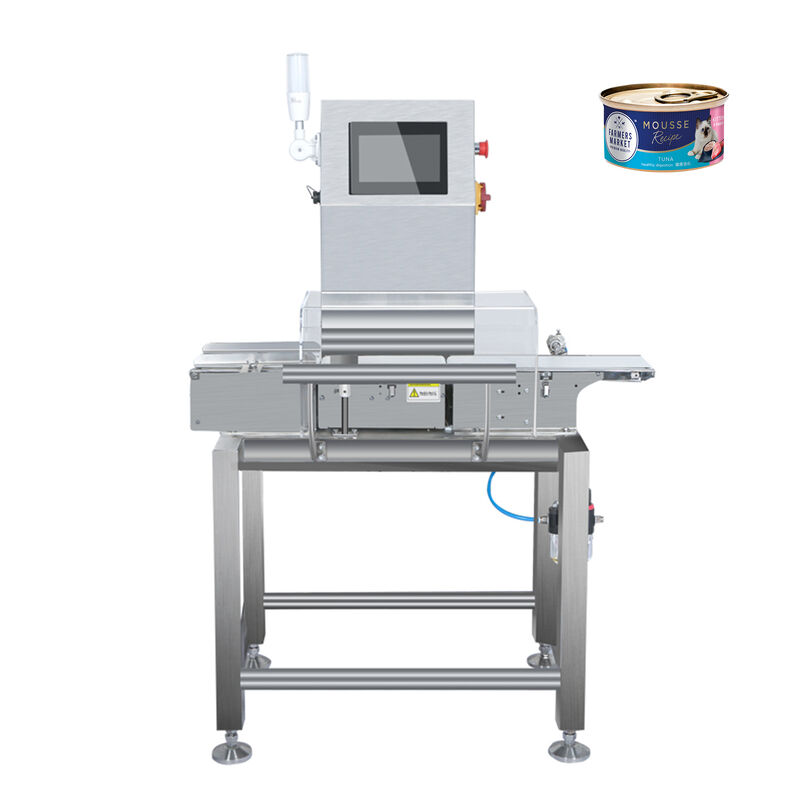

Large Throughput Checkweigher Scale with Automated Sorting System - CE and ISO Certified
What is a Checkweigher?
A checkweigher is an integrated system combining metal detection and weight verification technology. Also known as belt weighers, in-motion scales, conveyor scales, dynamic scales, and in-line scales, checkweighers ensure every product leaving the production line meets specified weight requirements. These systems are essential for manufacturers to maintain product quality and enhance customer satisfaction.
Our checkweighers and metal detectors provide ideal solutions for verifying products remain within specified weight ranges while detecting metal contaminants. We offer a comprehensive range of metal detectors and high-precision checkweighers designed for accurate measurements in food processing and industrial inspection applications.
Product Model
SACW-120A
Transfer Speed
20~60m/min
Power Supply
AC220V±10% 50HZ (60HZ)
Maximum Speed
180 pcs/min
Rated Power
0.15KW
Weighing Conveyor Belt Size
250mm(L)*120mm(W)
Single Weighing Range
1.5-200g
Elimination Method
Blow-out
Weighing Accuracy Range
±0.05g~±0.1g
Control System
High speed A/D sampling controller
Minimum Scale
0.01g
Preset Product Number
2000pcs
Inspection Item Size
Length: 30-150mm Width: 30-90mm Height: 10-100mm
Machine Size
900mm(L)*500mm(W)*1250mm(H)
Operation Direction
Facing the machine, left to right
External Air Supply
0.6-1Mpa
Air Pressure Interface
Φ8mm
Working Environment
Temperature: 0°C~40°C, Humidity: 30%~95%
Body Material
Stainless steel 304 polished
Operation Screen Display
Chinese, English, Turkish, Spanish, etc.
Other Standard Equipment
Windshield (colorless and transparent), calibration weight
Height of Belt Surface from Ground
650mm-750mm (can be customized)
Protection Level
Protection level conforms to IP-55 international standard
