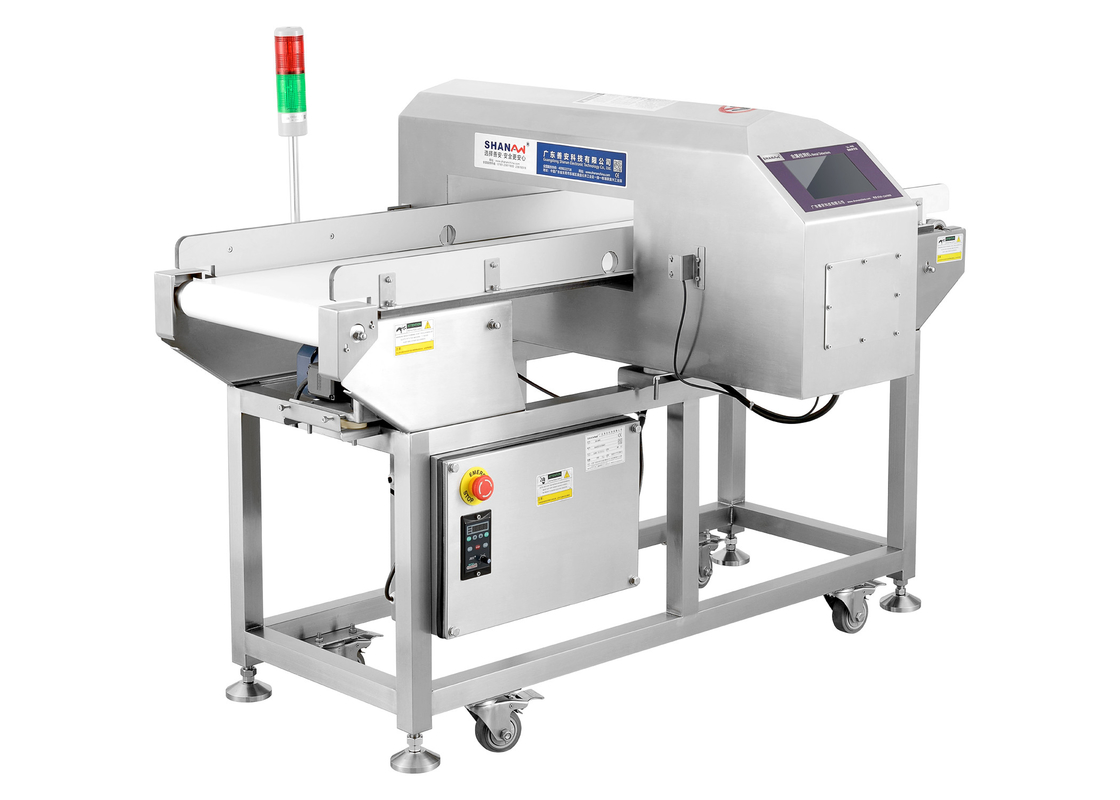

Custom FDA Food Grade Metal Detector Machine PU Belt With 40*12cm Tunnel Size

Custom FDA Food Grade Metal Detector Machine PU Belt With 40*12cm Tunnel Size
Custom FDA Food Grade Metal Detector Machine PU Belt With 40*12cm Tunnel Size Custom FDA Food Grade Metal Detector Machine PU Belt With 40*12cm Tunnel Size

Large Image :  Custom FDA Food Grade Metal Detector Machine PU Belt With 40*12cm Tunnel Size

Product Details:
Place of Origin: China
Brand Name: Shanan
Certification: CE ISO
Model Number: VDF4012
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in Wooden case
Delivery Time: 5-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units
Detailed Product Description
Tunnel Size: 40*12cm Application: Food Inspection
Length: 1450mm Alarm Method: Sound And Light Alarm
Reject Optional: Push Rod And Flap Drop Application: Food Metal Detection
H.S CODE: 8543709100 Optional: Digital Or Analogy Choose
Conveyor Belt: FDA Grade Weight: Around 250KG If Customized The Weight Will Different
Customized Language: English, Spanish And Russian PN: 6
High Light:

non ferrous metal detector

,

food safety detector

,

pu belt food metal detector

Food grade metal detector for food industry / high quality food metal detector machine





HOW A METAL DETECTOR WORKS


HOW A METAL DETECTOR WORKS
The most widely-used type of metal detector in the food industry functions on the principle known
as the "balanced coil" system. This was first registered as a patent in the 19th century, but the
first industrial metal detector was not produced in the UK until 1948.
The progress of technology has taken metal detectors from valves to transistors, to integrated
circuits and more recently, into microprocessors. Naturally this has increased their performance
giving greater sensitivity, stability and flexibility, as well as widening the range of output signals and
information they provide.
All the same, modern metal detectors are still unable to detect every particle of metal passing
through them. The physical laws applied in the  technology limit the absolute capability of the
instrument. Consequently, as with any measuring  instrument, metal detectors have restrictions on
accuracy. These restrictions vary depending on the application, but the main criterion is the size of
the detectable metal particle. Despite this, though,metal detectors perform a valuable and essential role in process quality control.



About sensitivity


For optimum sensitivity, the search head must be of the size appropriate for the specified food
product. It's important that the best attainable sensitivities are established and set for each
product, relating to product size, type and packaging. This process should only ever be carried
out in consultation with the manufacturer of your metal detector.
If you move your detection systems within your premises, or if you introduce new products, your
system must be re-evaluated - once again, in consultation with its manufacturer.
Many leading retailers will insist that their suppliers of private label goods agree any changes in
metal detection sensitivity settings, with them, in writing. If your company is a private label
manufacturer, Loma Systems strongly advise you to clarify the preferred policy with each of your
retailer customers.
Sensitivity adjustment controls must not be accessible to untrained employees. Access should
only be given to nominated, fully trained staff and for additional security, the controls should be
password-protected or kept locked.
Obviously, you will want to maximise the sensitivity of your detection system. However, you need
to guard against potential instability, where the effects of product/environment could cause false
rejects. You may find the following sensitivities helpful as guidelines.
Obviously, you will want to maximise the sensitivity of your detection system. However, you need
to guard against potential instability, where the effects of product/environment could cause false
rejects. You may find the following sensitivities helpful as guidelines



Details

Tunnel size

40*12cm 40*15cm 40*20cm 50*15cm 50*20cm 50*25cm 50*30cm
Sensitivity Fe(mm) 0.8 1.0 1.2 1.0 1.2 1.5 2.0
Sensitivity SUS(mm) 1.5 2.0 2.5 2.0 2.5 3.0 3.5
Detection height 120 150 200 150 200 250 300
Detection width 400 500
Belt speed



10-35 meters per minute adjustable

Alarm method Light and sound and optional reject





Optional reject 1 :Push rod





Optional 2 flap drop





Optional 3 Air blast

Appplication:





Food & Beverage Manufacturers

Food & Beverage Processors

Food & Beverage Distributors

Food & Beverage Storage Facilities

Food & Beverage Importers
