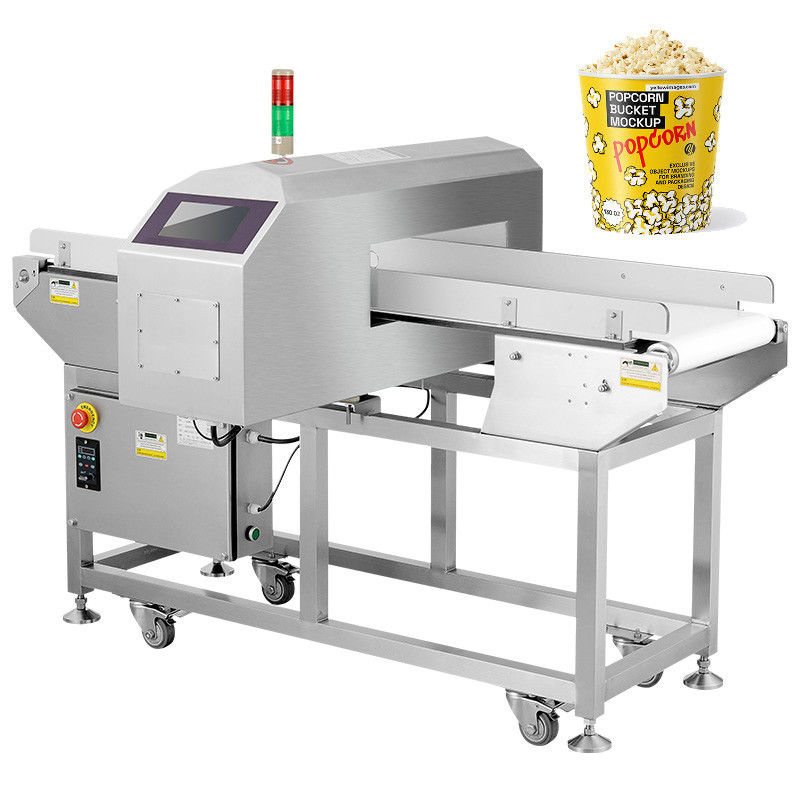

Industrial Food Grade Metal Detector / Non Ferrous Metal Detector Head

Industrial Food Grade Metal Detector / Non Ferrous Metal Detector Head
Industrial Food Grade Metal Detector / Non Ferrous Metal Detector Head

Large Image :  Industrial Food Grade Metal Detector / Non Ferrous Metal Detector Head

Product Details:
Place of Origin: DongGuan, China (Mainland)
Brand Name: VFINDER
Certification: CE , ISO
Model Number: VCB-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Wooden Box
Delivery Time: 5-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/ month
Detailed Product Description
Material: Stainless Steel Detecting Theory: Balance Coil
Control Type: Digital Or Analogy Choose Conveyor Length/Height Of Pass Line: 800mm/750±50mm
Waterproof Standard: IP67 Power Supply .: 110V-220V
Warranty: 12 Months MOC Options: SS 316, SS 304, MS Powder Coated Or Aluminium; Non-metallic Parts Made From Polypropylene (Food Grade)
High Light:

non ferrous metal detector

,

metal detectors for food industry





Detection Analogy Food Grade Metal Detection Head For Food Industry Stainless Steel Industrial Metal Detectors





Brief information:



VfinderConveyor Metal Detectors (VCB Series) detect metal contaminants accidently present in any product on a Conveyor line and reject the faulty product. Our Metal Detectors detects all Ferrous and Non-Ferrous metals including Stainless Steel. An automatic Phase Angle function cancels out any variation in product effect caused by the product under inspection.



Transport system :



The system employed passes product through the head aperture. The main types of

Belt conveyor metal detection systems based on the means of transport: Conveyor Mounted

We usually have two optional of the transportation belt :

Normal conveyor belt

Chain modular conveyor belt



Rejection system:



Following the detection of metal an automatic reject system is often used to remove the contaminated product. Various methods are used depending on the product and transport system and include:

Push arm

Air blast

Drop Flat

Value divert



Install Location:



  • Belt Conveyor mounted systems are usually located at the end of the line or as close to the end of the
  • line as practical. A continuous conveyor runs through the aperture carrying with it product packs
  • or units. Each is checked individually and rejected if metal is detected. The sensitivity of the detection head is important in determining the type and size of metal pieces detected.
  • Sensitivity Requirements
  • The equipment must achieve the following:
  • Sensitivity must be stable and require infrequent adjustment
  • Not reject good product or provide false positive results
  • Be capable of detecting metal in various orientations relative to the detection head
  • It is important to work with your equipment supplier in determining and establishing these conditions. Sensitivity levels must be realistic and attainable and your supplier will be best placed to provide guidance. In some cases customer technical standards will also provide suggested sensitivity levels for their products. The following are sample sensitivities (mm) based on pack size.



Basic features:


Accurate And Reliable Metal Detection

Precise Detection, Even At Maximum Throughput

Simple To Install And Use

Accommodates Quick Product Changes

Suitable For Packs Made From Non-Metal Materials And Metal Materials Too (Aluminum Foil)

Easy To Clean And Maintain



Salient Features:



Detecting Theory : Balance Coil / Electromagnetic Induction

Aperture/Tunnel Size Options : 150~1500mm (W) x 100~600mm (H)

Conveyor Belt Size Options : 80~1450mm (W) x 500~2000mm (L)

MOC Options : SS 316, SS 304, MS Powder Coated or Aluminium; Non-metallic Parts made from Polypropylene (Food Grade)

Rejection Options : Belt Stop, Air Jet, Pusher, Falling Drop, Belt Compress, Down Flap



Specification:



Type VB-3008 VB3010 VB4008 VB4010
Controller type Analog / Digital / Touch Screen
Passing height ※1 100mm 80mm
Sensitivity ※2 Fe φ0.4 φ0.3
SUS φ0.8 φ0.7
Rejection method Conveyor stop and buzzer (through optional configurations).
Belt width 300mm 220mm
Detection unit Opposing-type Coaxial-type Coaxial-type (SUS)
Conveyor frame SS SUS SS SUS
Conveyance speed 20m/min(50Hz)・24m/min(60Hz)
Power source AC100V±10%・50/60Hz
Conveyor length /
height of pass line
800mm/750±50mm
Weight 220kg 250kg




Industrial Food Grade Metal Detector / Non Ferrous Metal Detector Head 0
