Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Sauce Packaging Metal Detection Solution


Material:	SUS 304	Reject Optional:	Push Rod And Flap Drop
Optional:	Digital Or Analogy Choose	Machine Structure:	Full Structure Takes Of Stainless 304
Tunnel Size:	Customize	Certification:	CE , ISO,IFS, HACCP
Warranty:	12 Months	Color:	Sliver
Weight:	Customizable	Type:	Food Grade
Machine Size:	Customized	Conveying Speed:	18-36m/min
Belt Speed:	10-40m/min	Rejection:	Push Rod
Accuracy:	High Accuracy	Detection Range:	Wide
Wrarranty:	12 Months	Communication Interface:	RS232/485/USB
Conveyor Belt:	Modular Chain Conveyor	Humidity Range:	Wide Range
Voltage Supply:	110v ~ 220v

Material:	SUS 304
Reject Optional:	Push Rod And Flap Drop
Optional:	Digital Or Analogy Choose
Machine Structure:	Full Structure Takes Of Stainless 304
Tunnel Size:	Customize
Certification:	CE , ISO,IFS, HACCP
Warranty:	12 Months
Color:	Sliver
Weight:	Customizable
Type:	Food Grade
Machine Size:	Customized
Conveying Speed:	18-36m/min
Belt Speed:	10-40m/min
Rejection:	Push Rod
Accuracy:	High Accuracy
Detection Range:	Wide
Wrarranty:	12 Months
Communication Interface:	RS232/485/USB
Conveyor Belt:	Modular Chain Conveyor
Humidity Range:	Wide Range
Voltage Supply:	110v ~ 220v

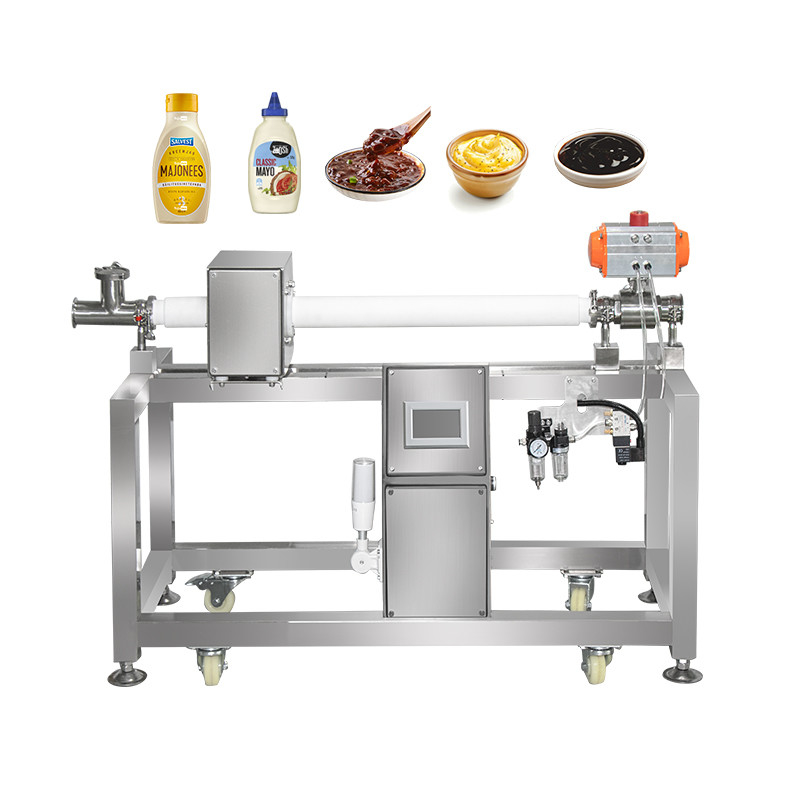

Sauce Packaging Metal Detection Solution Guarantees Low-Carb Sauce Safety Contaminant-Free

Products Description

Model		SHANAN Metal Separator
Machine length (mm)		1330~2000 (can customize)
Detection tunnel width (mm)		200~1200 (can customize)
Detection tunnel height (mm)		50~1000 (can customize)
Standard detection sensitivity	FE(Φmm)	≥0.5
	NON-FE(Φmm)	≥0.8
	SUS304(Φmm)	≥1.0
Protection level		IP67
Number of memory products		200+ kinds
Display mode		Touch Screen
Operation mode		Touch button input
Alarm mode		Alarm stop, buzzer alarm or rejector device optional
Machine material		Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other standards
Conveyor belt material		Food grade PVC or PU belt
Machine weight		About 280KG (can customize)
Motor		90~370W
Transfer speed		10-28m/min (optional and adjustable)
Power supply		AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
Belt height above the ground (mm)		700+100 (can customized)
Maximum load (single piece)		10~50KG (can customized)
Using environment		Temperature: -15℃~40℃, relative humidity: 30~85RP
